All measures done with a Red Pitaya 125-14 high-precision oscilloscope.
All values in [Vpp] (Volts peak-to-peak).
| Module | Measure | |
|---|---|---|
| Schlappi Engineering Angle Grinder | 26.2 | This is the limit of the module power supply |
| Sputnik Modular Variable Waveform Generator | 25.2 | This is the limit of the module power supply |
| Xaoc Odessa | 25.3 | This is the limit of the module power supply |
We see that some modules can easily reach the max peak-to-peak level permitted by the module power-supply.
It is important to attenuate the output of these modules before using the signal as input for another module.
Such levels will probably not damage any other modules inputs but these levels will introduce some serious clipping and/or a lot of distortion.

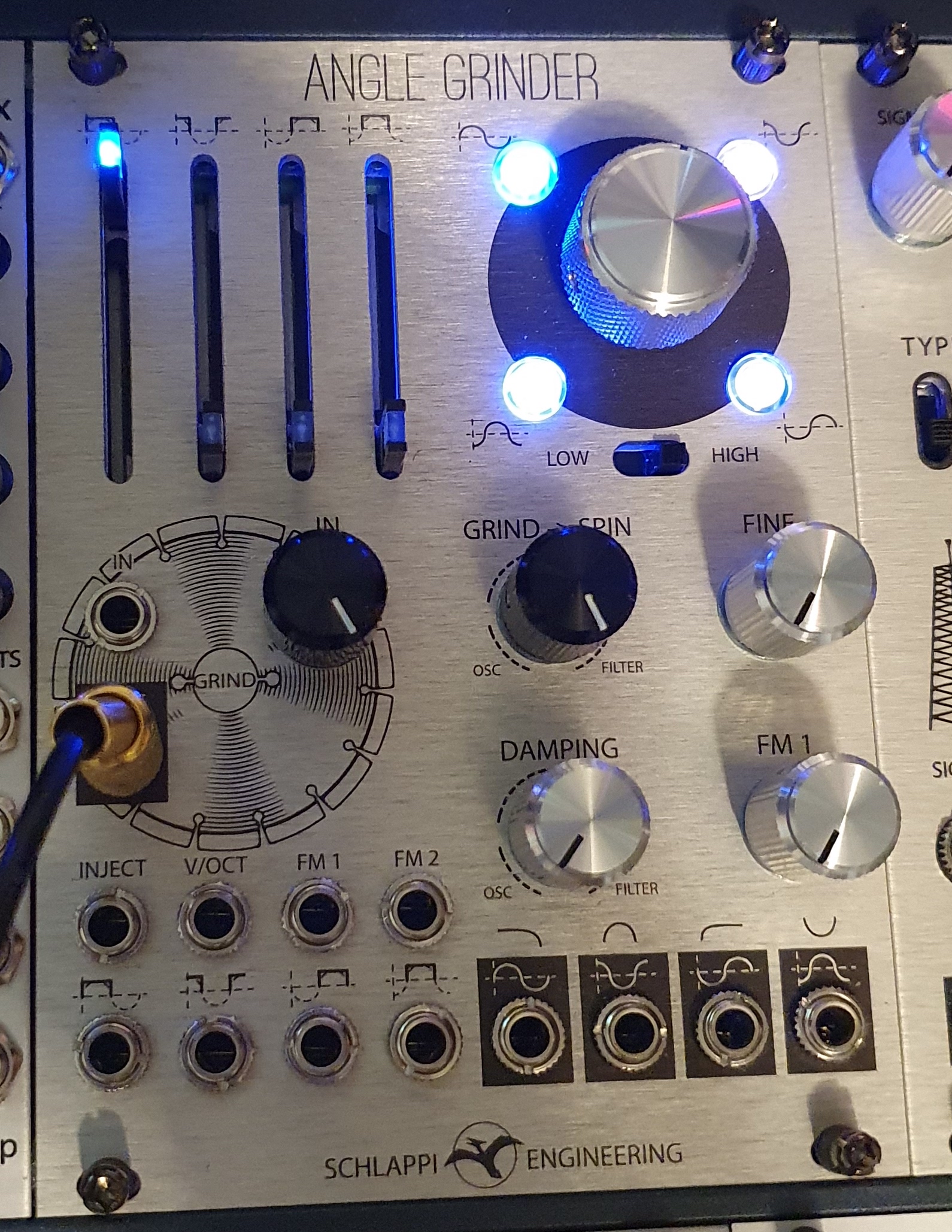

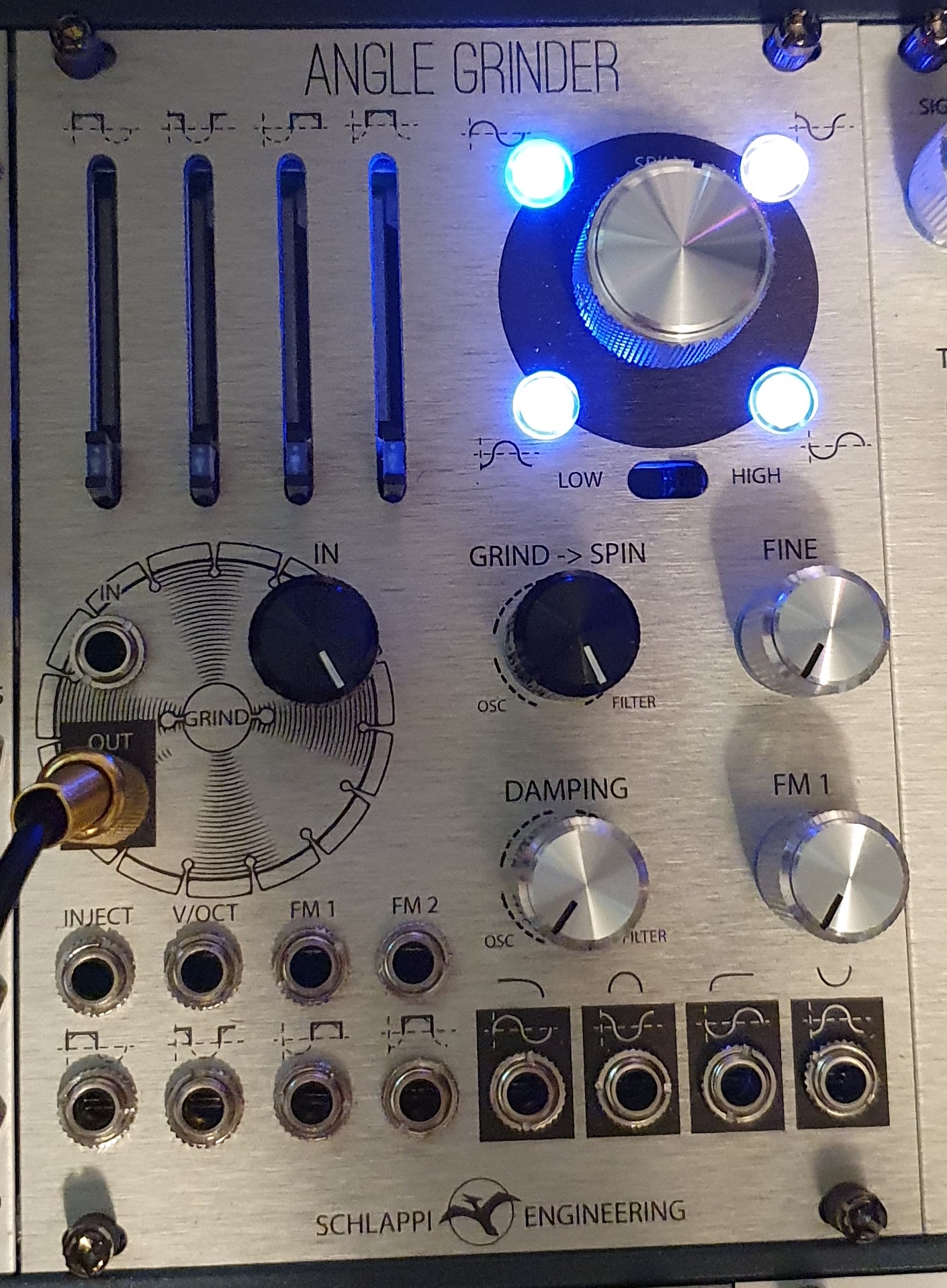

Schlappi Engineering Angle Grinder

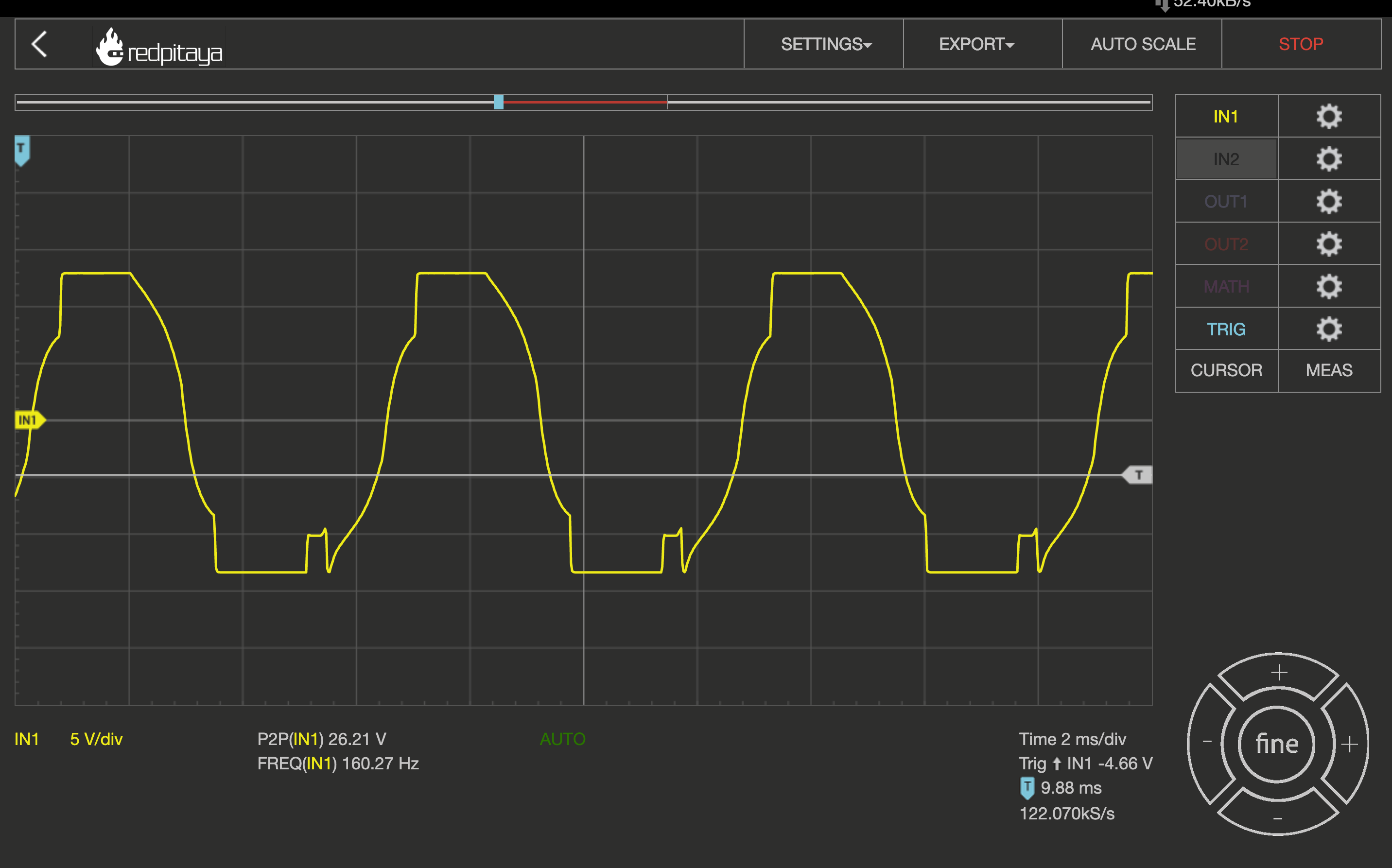

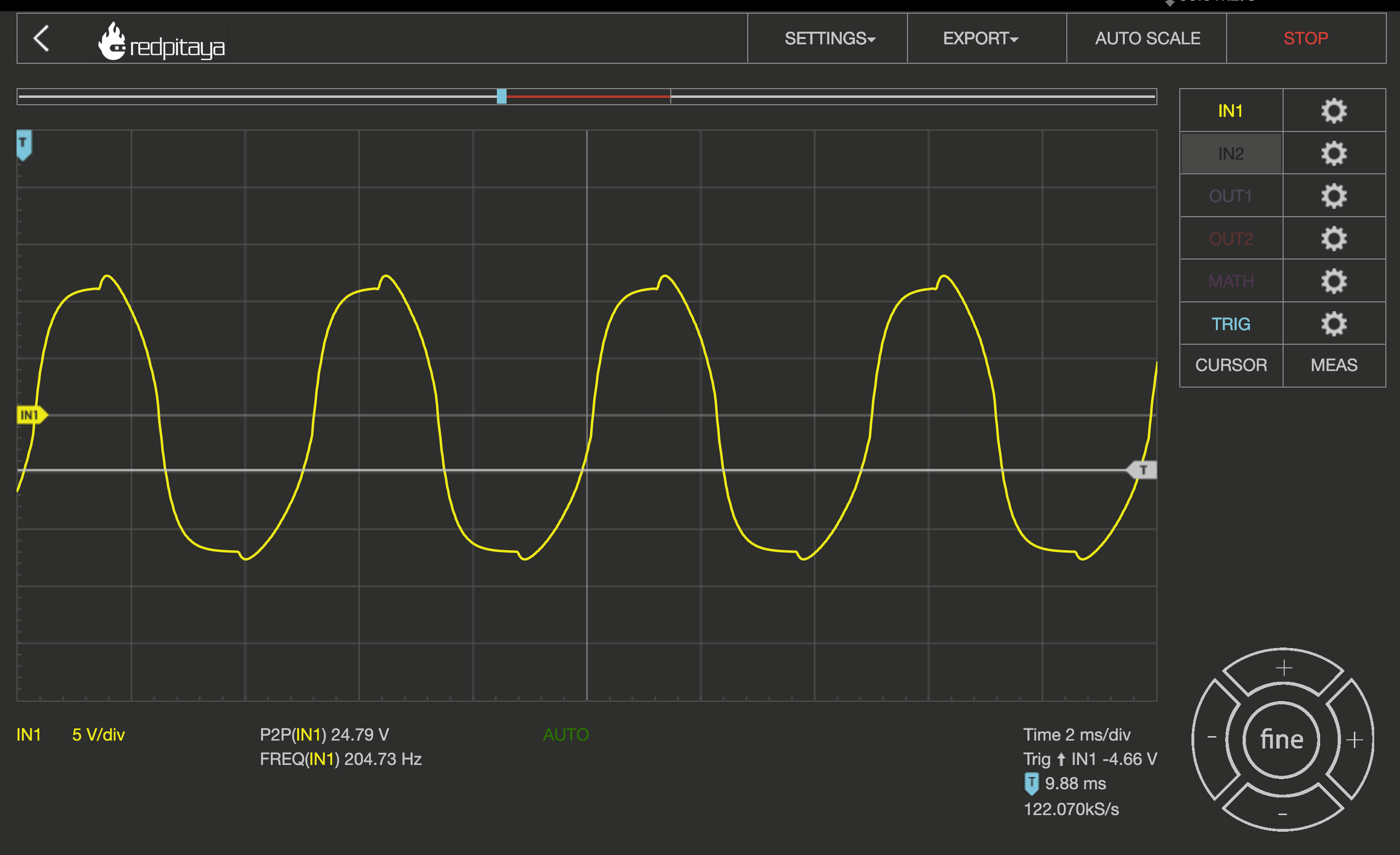

26.2 Vpp :
Click on the images to view the full resolution version.
24.8 Vpp :

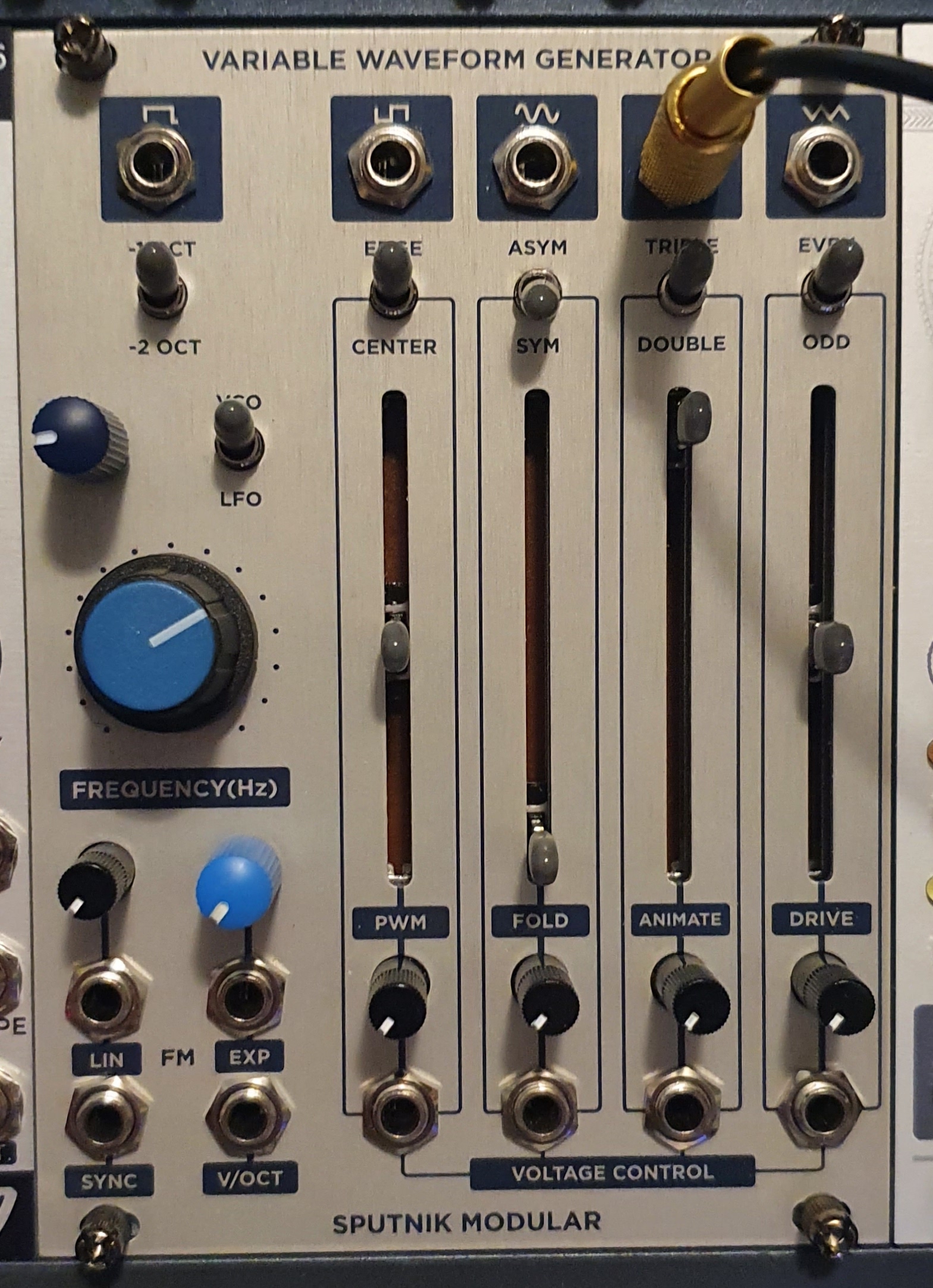

Sputnik Modular - Variable Waveform Generator (VWG)

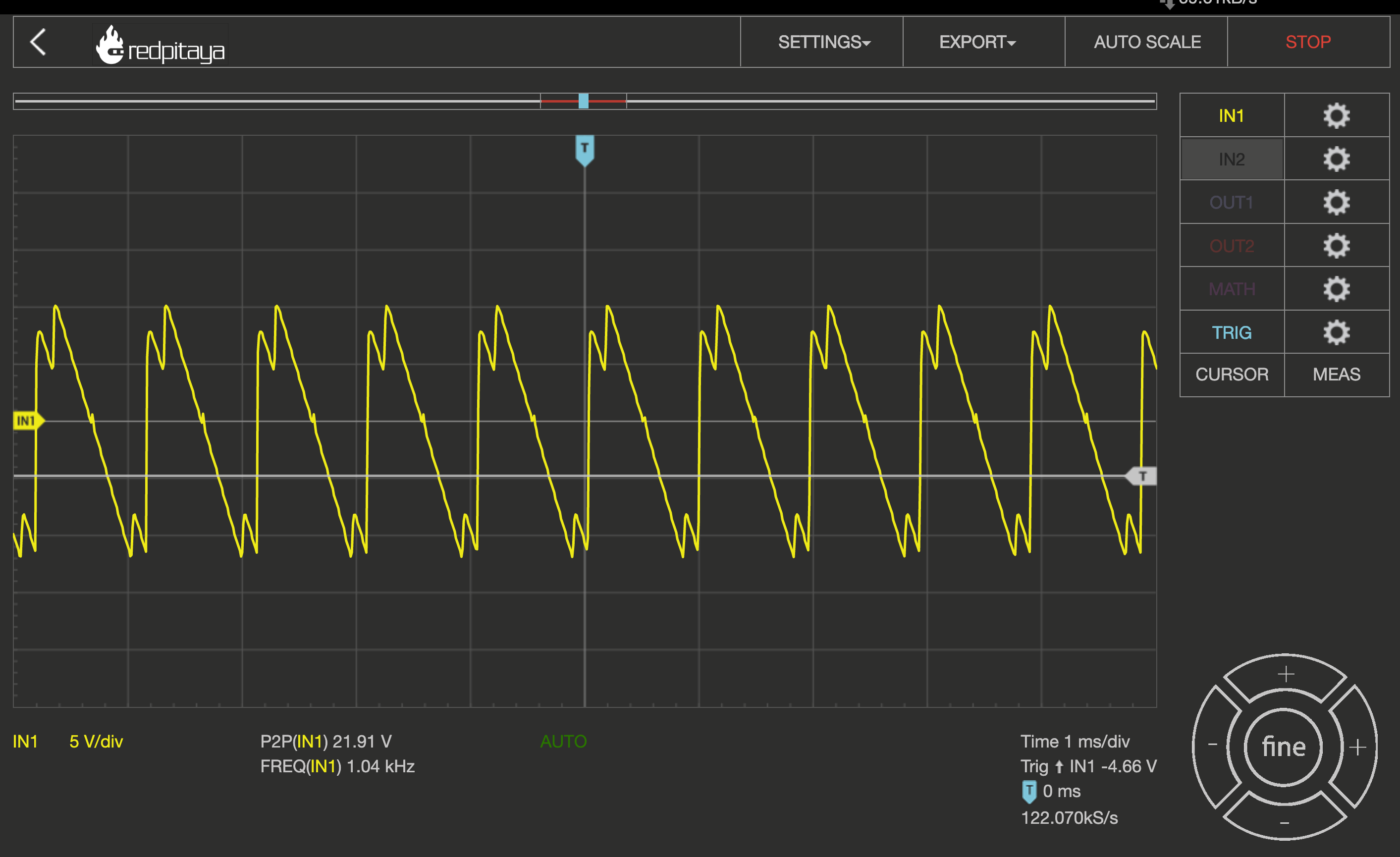

21.9 Vpp with the Saw output :

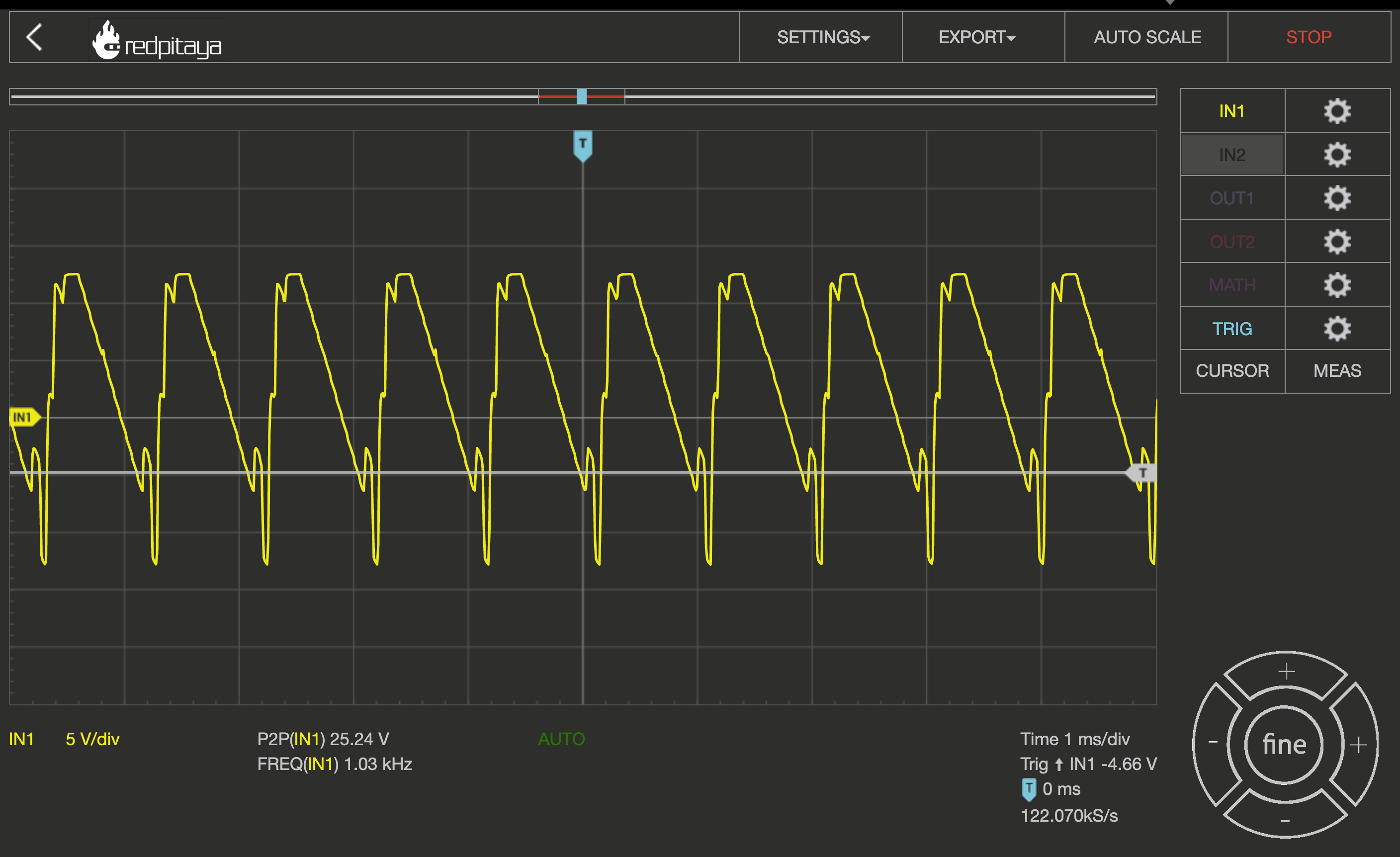

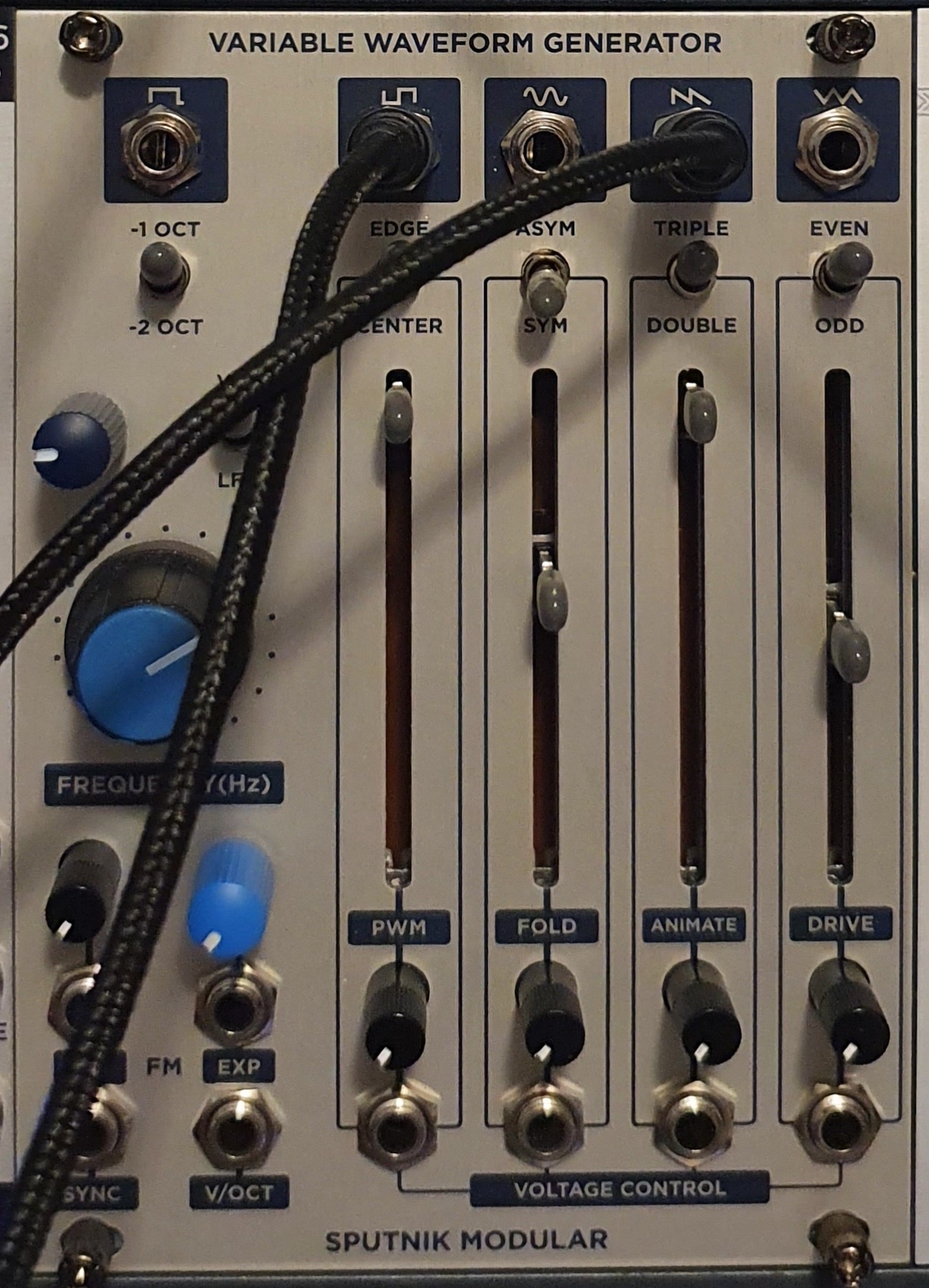

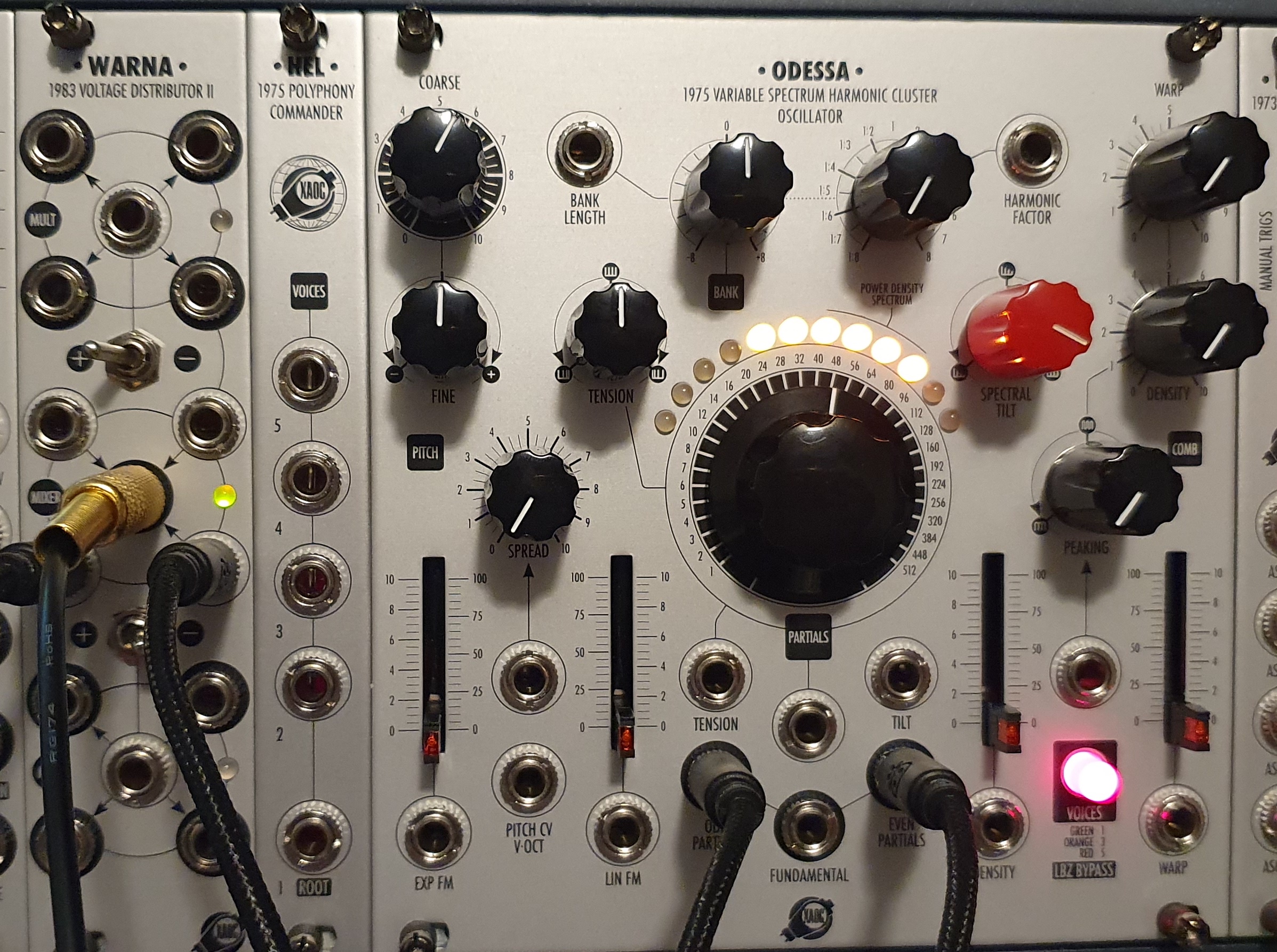

25.2 Vpp with the Square and Saw outputs mixed together (with a Xaoc Warna II) :

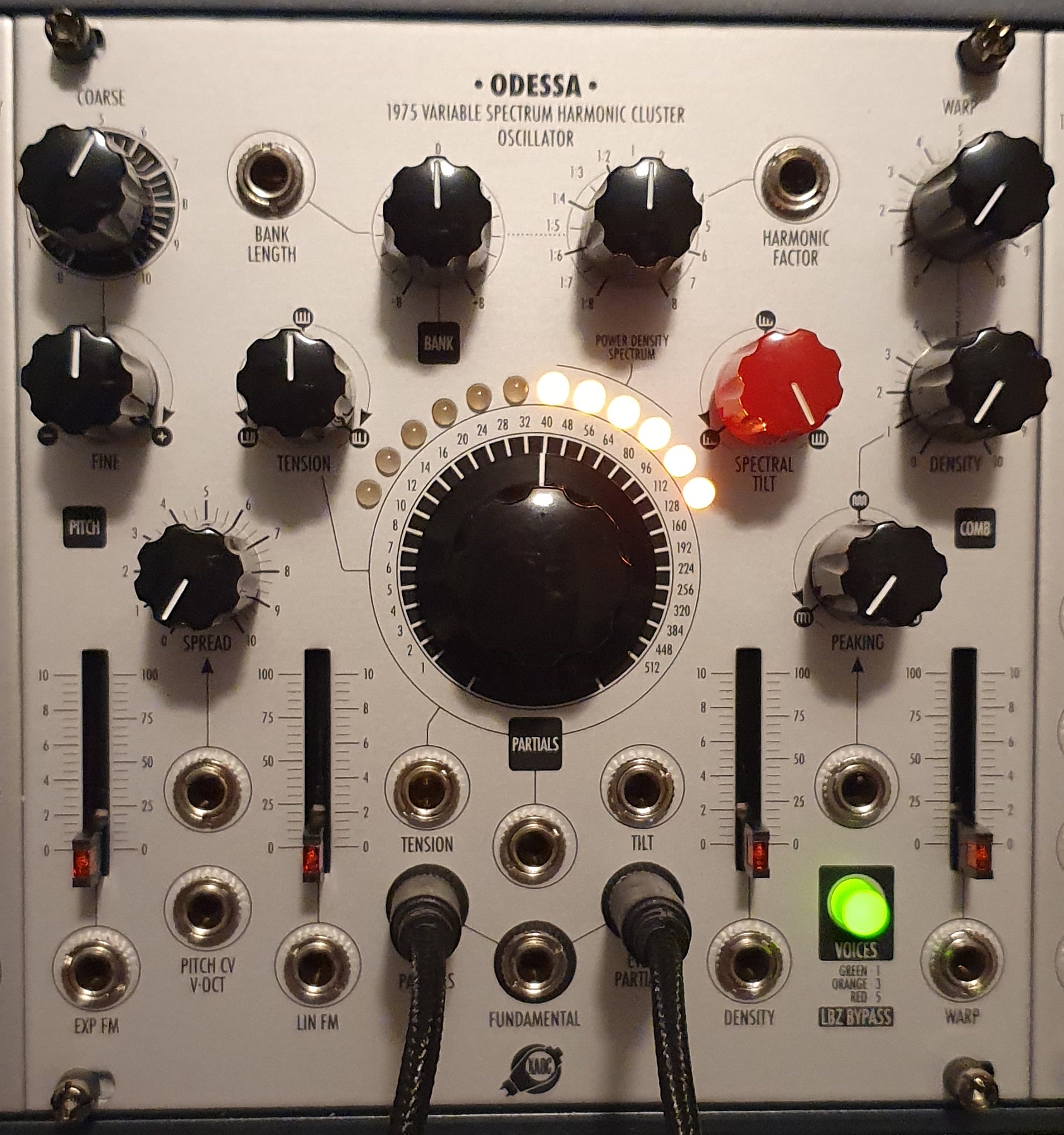

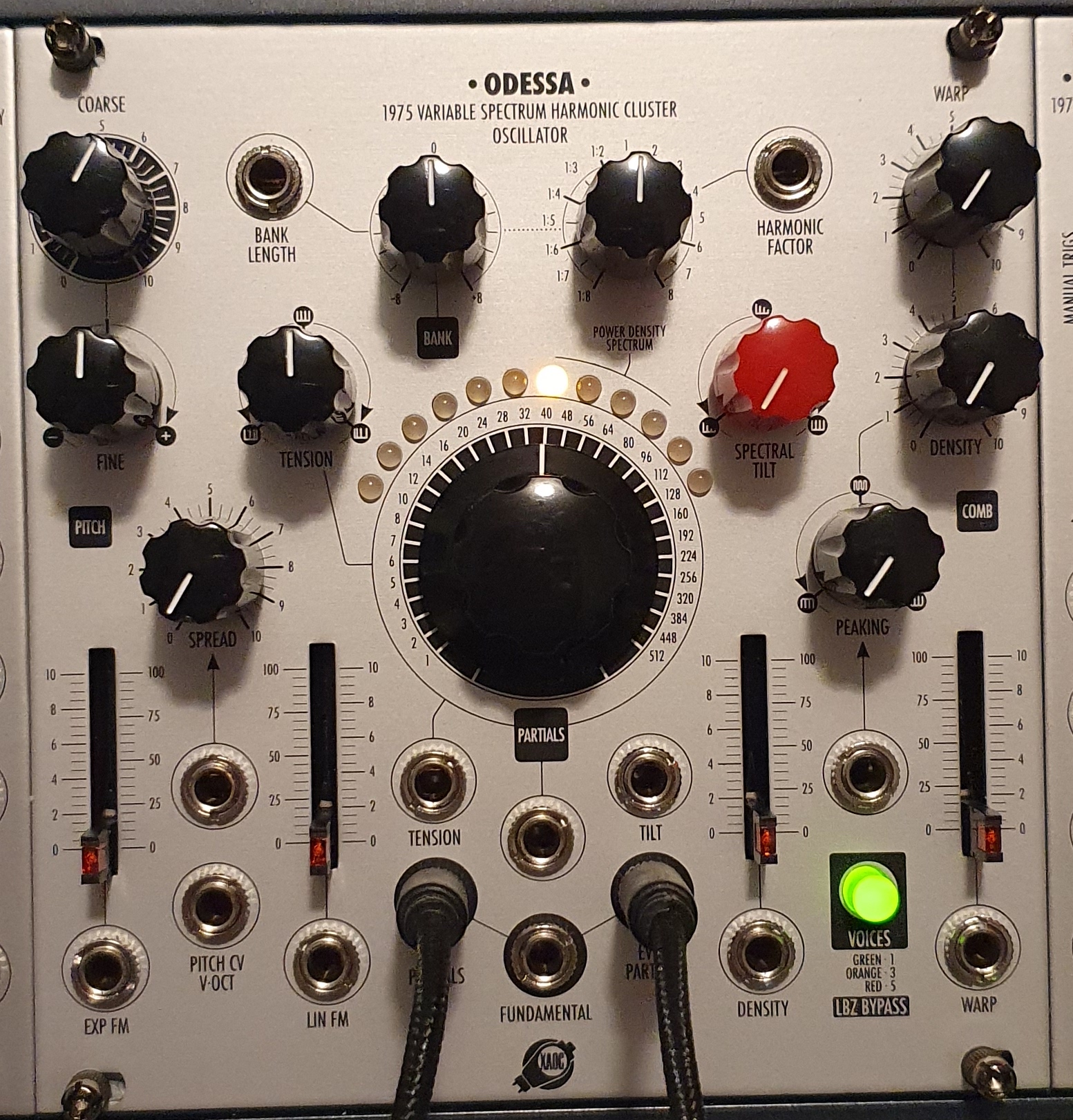

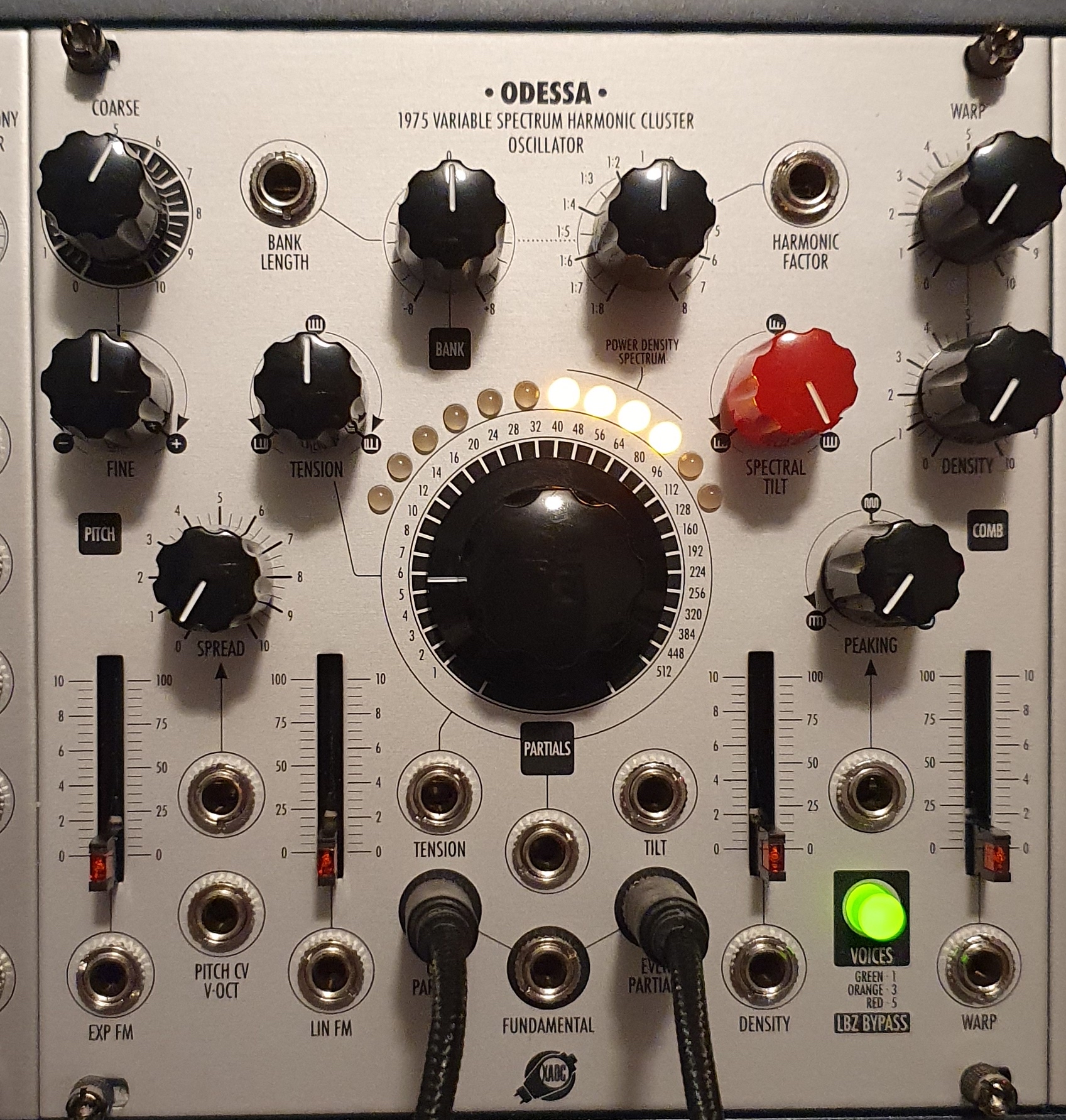

Xaoc Odessa

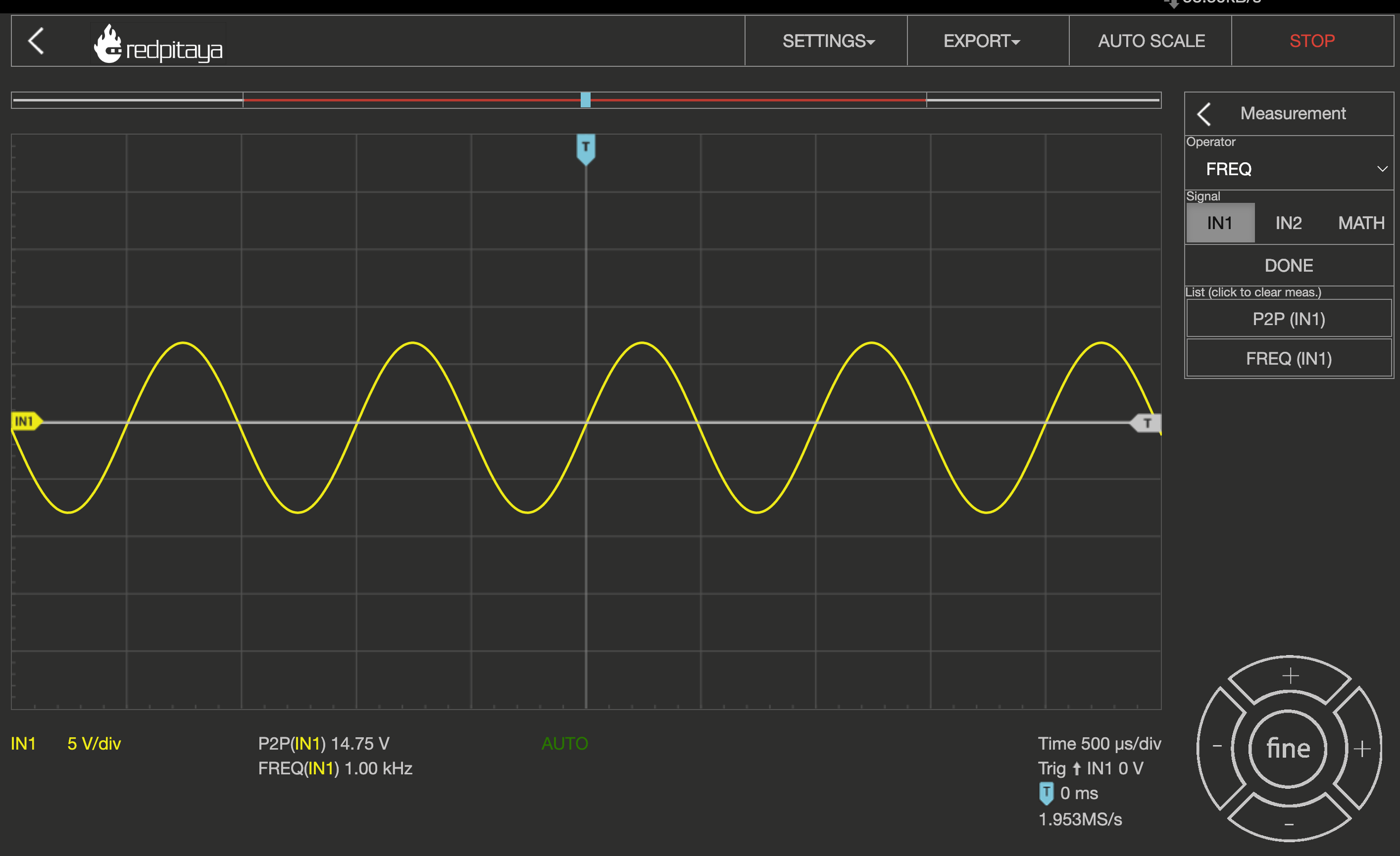

14.75 Vpp :

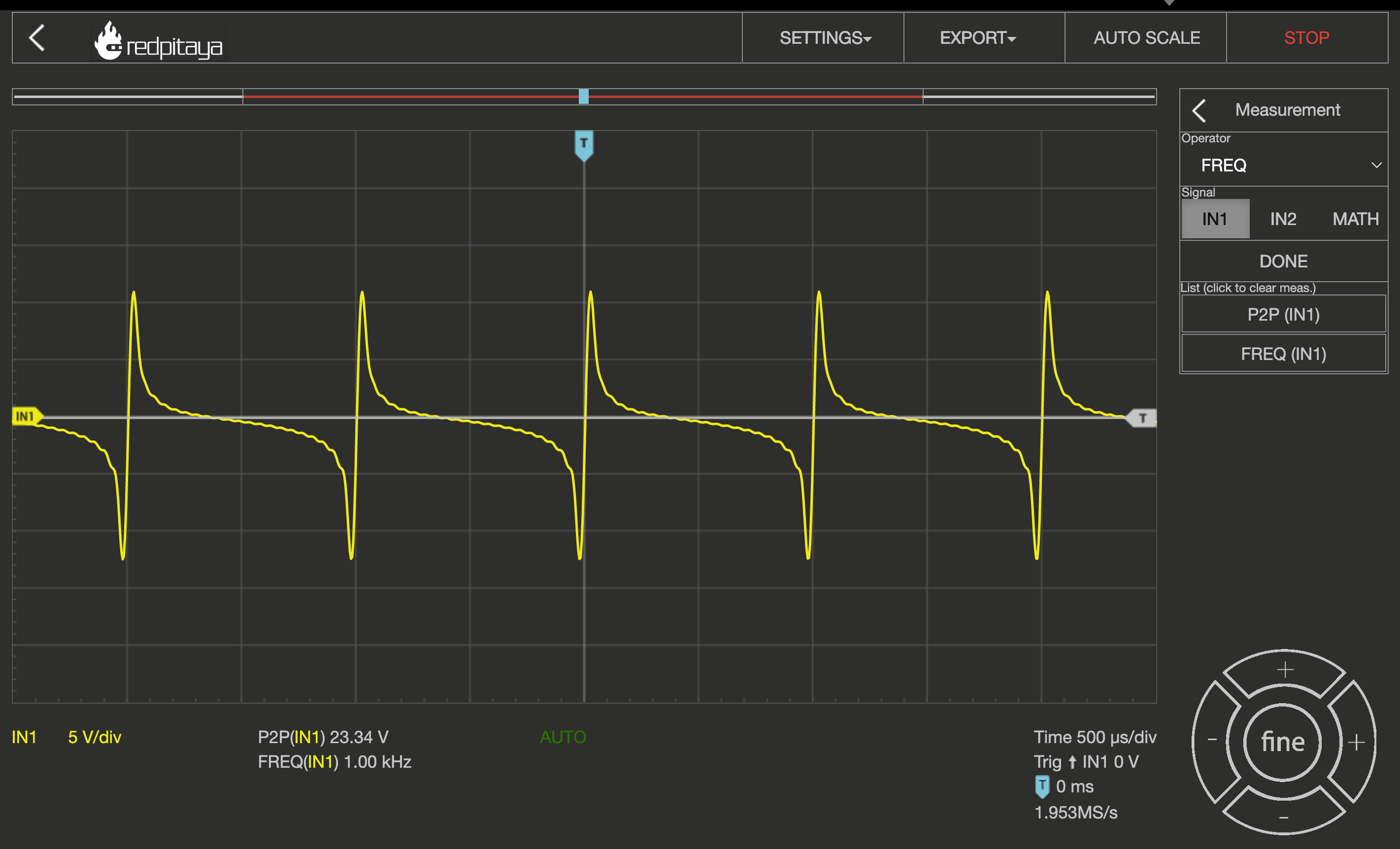

23.3 Vpp :

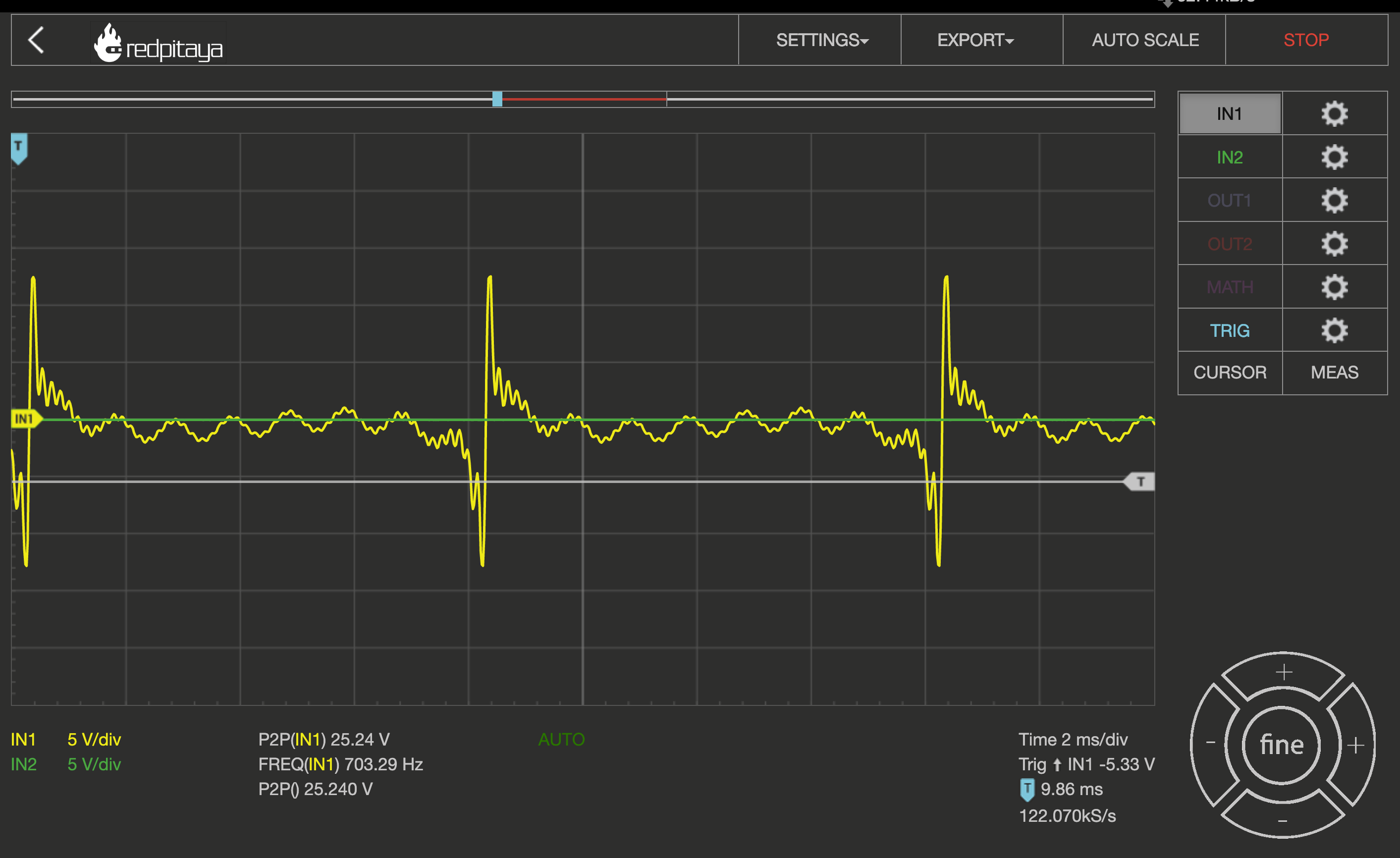

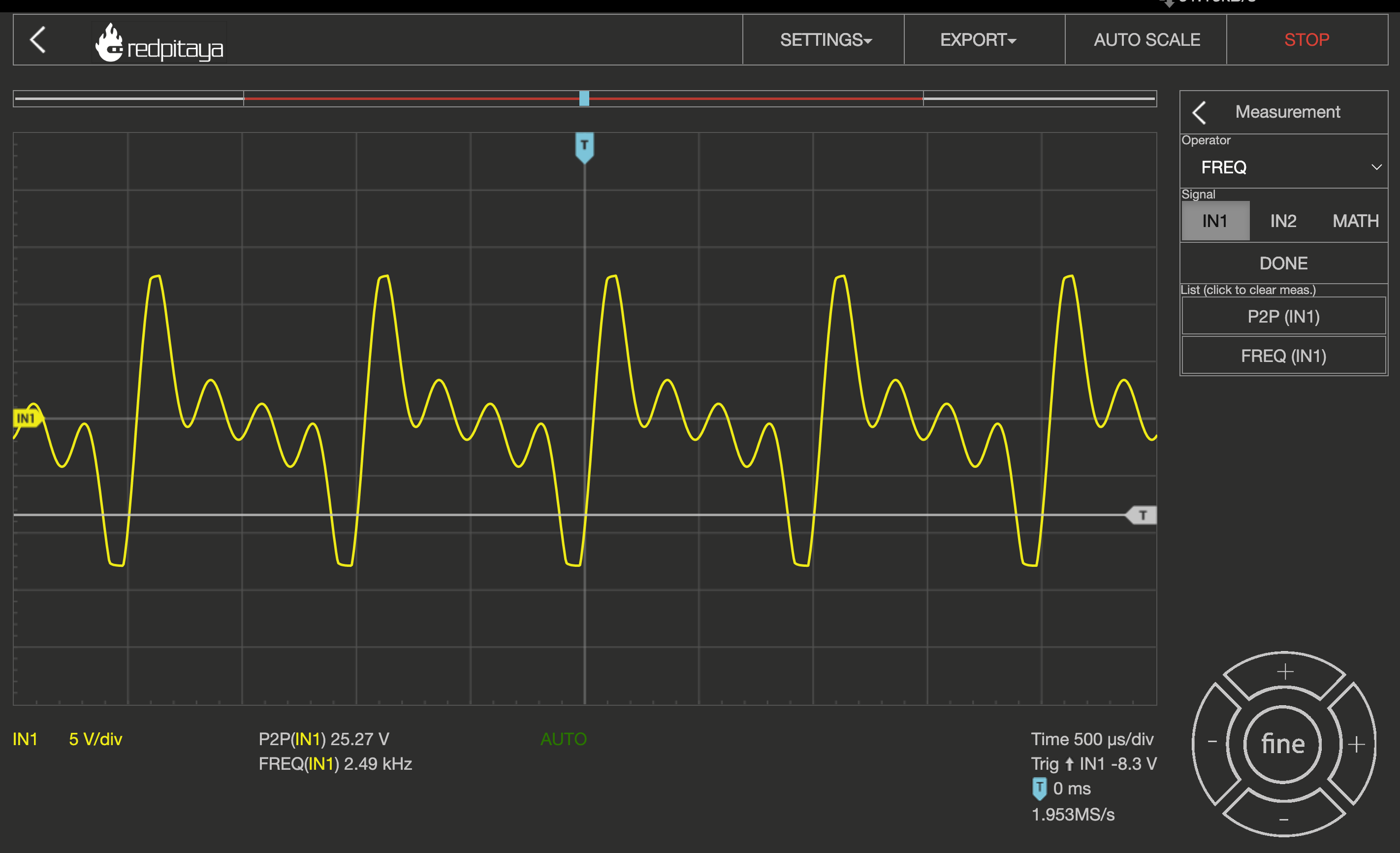

25.3 Vpp :
25.2 Vpp :
