| Voice 1 (Pad) | Voice 2 (Motif 1) | |||||
|---|---|---|---|---|---|---|
| Sound sources | 4ms Spherical Wavetable Navigator (SWN) | Sputnik Modular Variable Waveform Generator (VWG) | ||||
| Filters | Xaoc Zagrzeb | Xaoc Zagrzeb | ||||
| Envelopes | ||||||
| VCAs | Xaoc Tallin | |||||
| LFOs | Xaoc Zadar, SWN, Marble | Xaoc Zadar, Xaoc Batumi | ||||
| Sequencer | NDLR Pad | NDLR Motif 1 | ||||
| Master clock | NDLR | |||||
| External effects | Valhalla Supermassive | Valhalla Supermassive | ||||
| Mixer | Doepfer A-135-2 | |||||
| Utilities | 2hp Mix Expert Sleeprs FH-2 as MIDI/CV interface between NDLR and Eurorack |
Voice 1 :
FH-2 outputs 1..6 --> SWN 1V/oct inputs A..F
SWN LFO #2 --> SWN Browse CV
SWN LFO #5 --> SWN Latitude CV
SWN out L+R --> Zagrzeb
Cara (Marble) Y --> 2hp Mix
Zadar D --> 2hp Mix
2hp Mix --> Zagrzeb FM 1, CV level set to 70% (noon)
Zagrzeb cutoff 6/10
Zagrzeb resonance 60%
Zagrzeb Low Pass L+R --> A-135-2 inputs 1+2
A-135-2 outputs 1+2 --> out (Ableton)
Zadar A --> A-135-2 input CV 1
Zadar B --> A-135-2 input CV 2
FH-2 output 7 (trigger) --> Zadar Trig A
Zadar A : 140s, 8V, Warp -0.2, Resp 0.7, Shape D5, Sustain off, infinite repeat (looping), No retrig
Zadar B : 90s, 8V, Warp 0.1, Resp 0.6, Shape D5, Sustain off, infinite repeat (looping), No retrig
Zadar D : Shape Q0, 60..120s, 8V, Warp 0, Resp 0.7, Sustain off, infinite repeat (looping), No retrig
SWN: 1V/oct position, all channels center panned, all channels same output level
FH-2 :
MIDI converter 1 : CV, Poly, 6 voices, Voice allocation = lowest voice
MIDI converter 1 : Trigger, base output = 7
outputs 1..6 : CV 0-10V
outputs 7 : trigger 0-8V
Voice 2 :
FH-2 output 9 --> VWG V/oct
FH-2 output 10 --> Zadazr Trig A
Zadar A --> Tallin A linear
Zadar A : shape A0, Warp 0, Resp -0.4, level between 5..8V, Sustain off, No repeat, Analogue retrig (AN)
Tallin A : linear, level set to 100% (noon)
Batumi 1 Sin --> VWG PWN (Batumi: quite slow, free mode)
Batumi 2 (Saw) Random --> Zagrzeb FM 1, CV set to 40-50%
Zagrzeb : cutoff 6/10, Resonance 3/10
VWG : only square used; Edge, slider at 50%, PWM CV at 75%
VWG Square --> Zagrzeb L (Mono)
Tallin A --> out (Ableton)
FH-2 :
MIDI converter 2 : CV + Trigger, base output = 1/1
outputs 9 : CV 0-10V
outputs 10 : trigger 0-8V

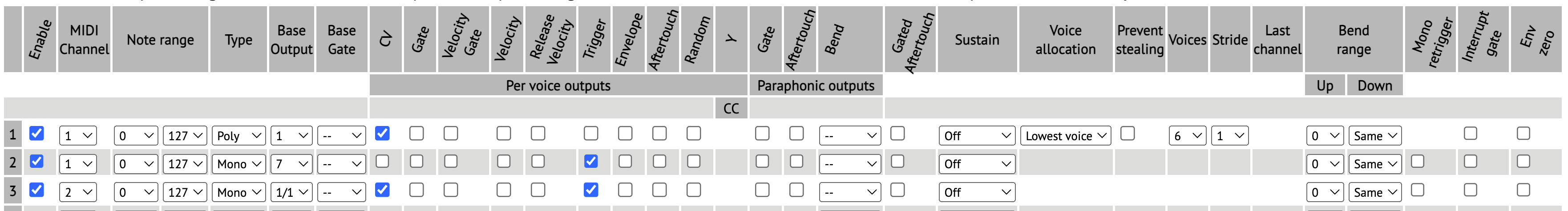

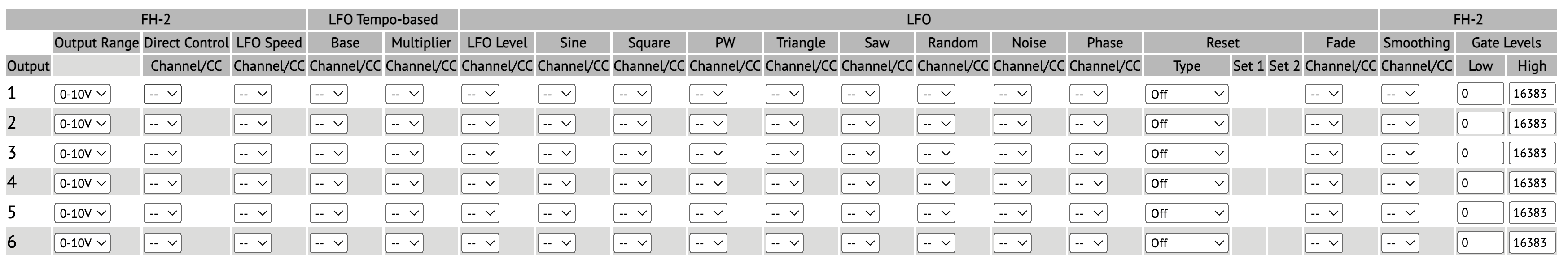

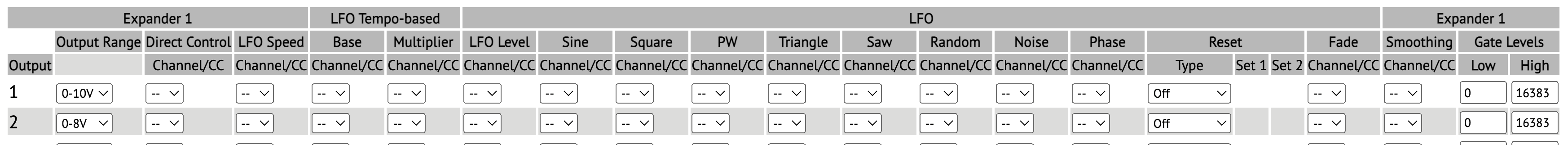

FH-2 setup :
