Rackbrute power supply repositioning

I moved my Rackbrute 6U power-supply from the top row to the bottom row.

I used an ATX 6-6 pins extension cable. This is a cable normally used in computer cases. It's easily available in several length and colors. A long one could even allow to reposition the Rackbrute power supply on the opposite side of the case.

Factory setup

Click on any image to view it in full size.

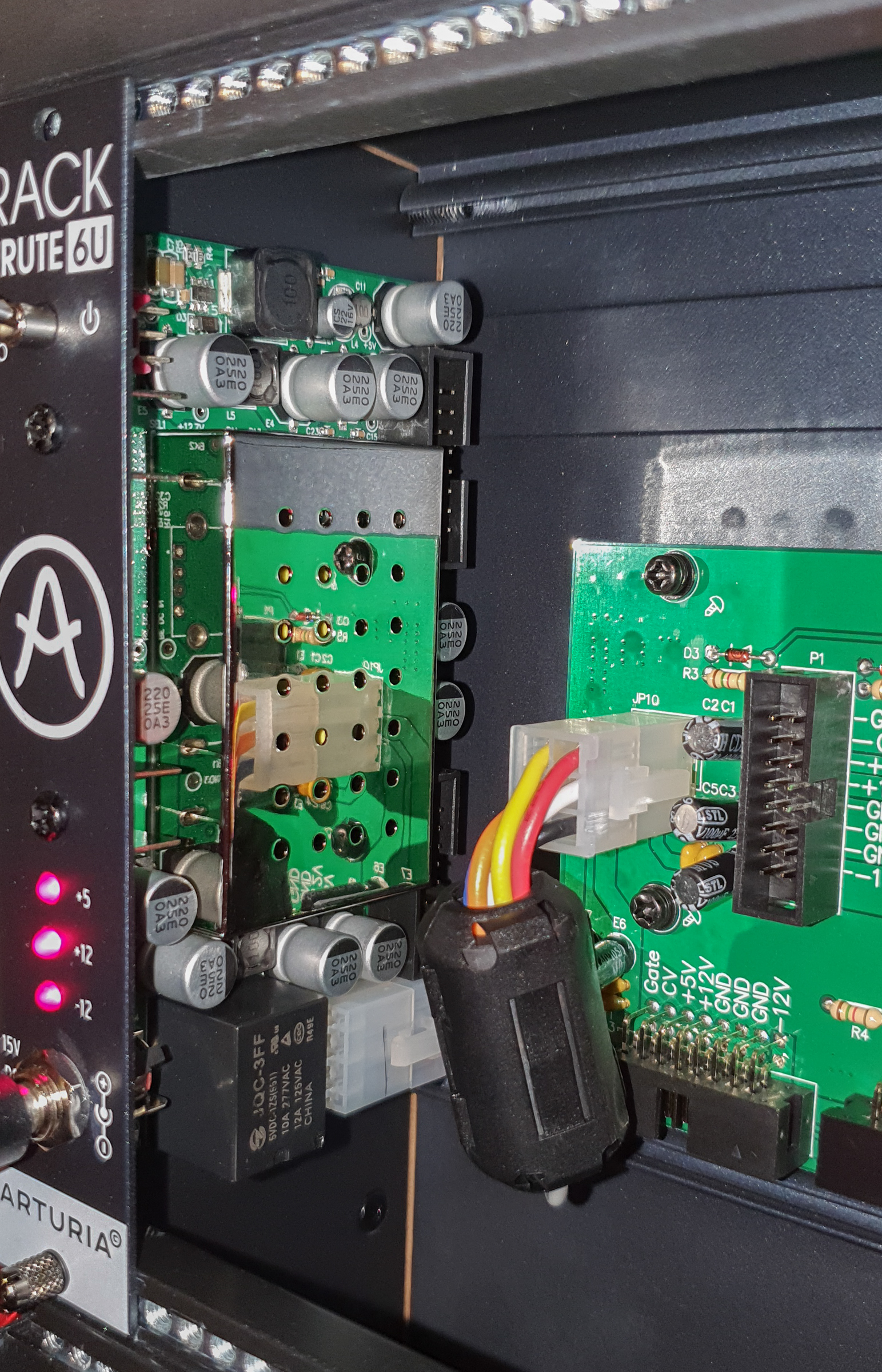

Default (factory) position of the power-supply

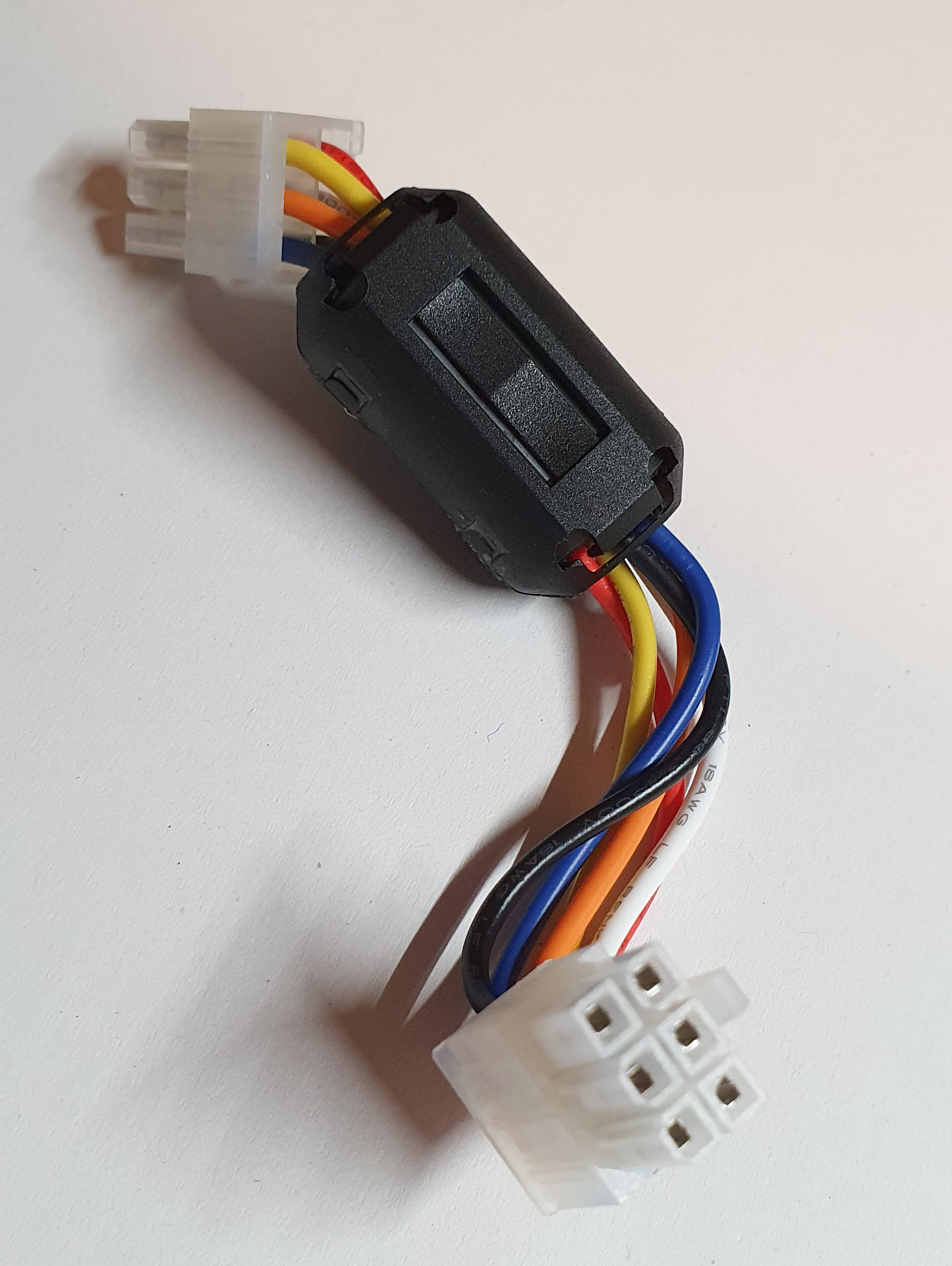

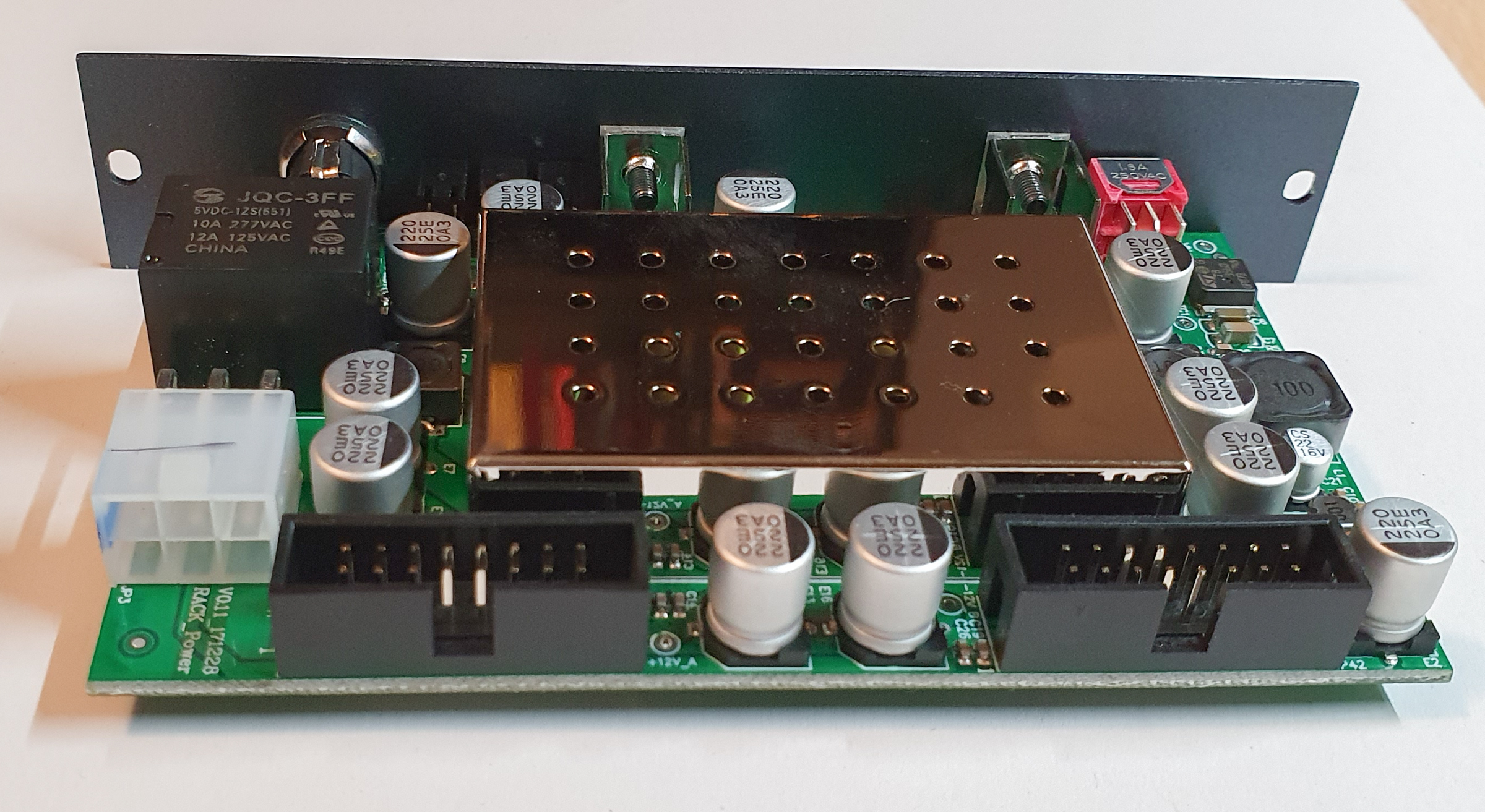

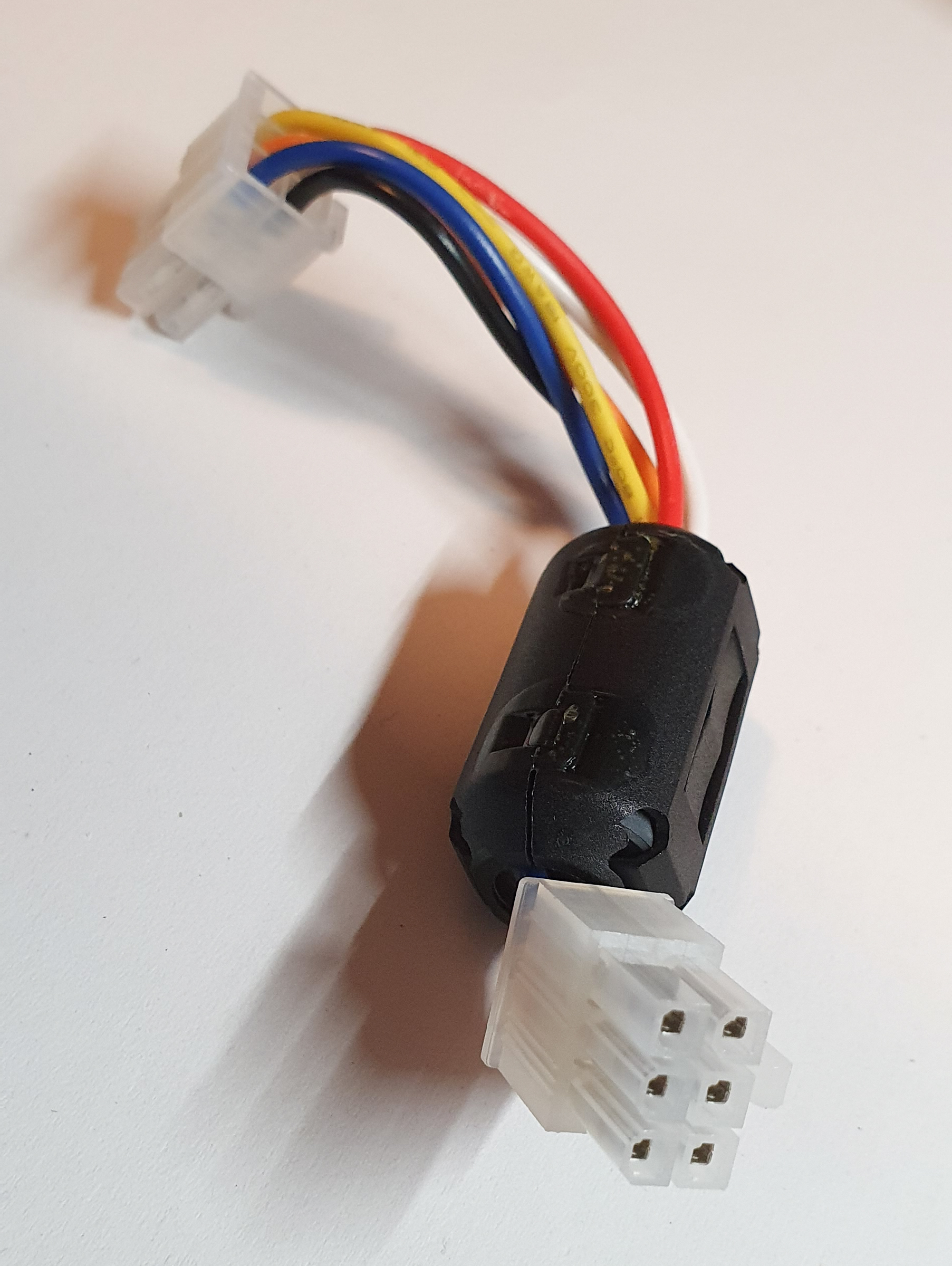

The power supply and the default factory cable

Click on any image to view it in full size.


The extension cable

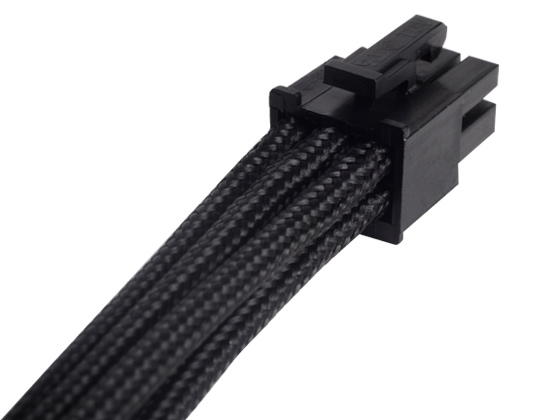

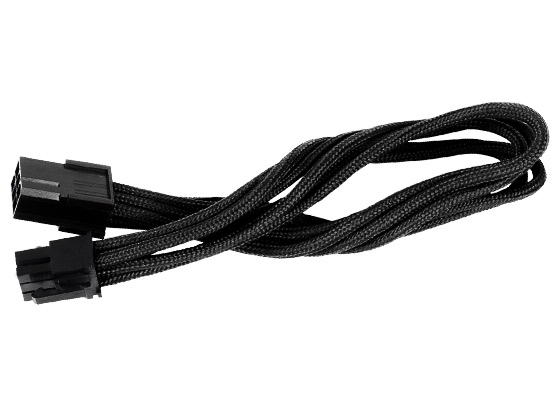

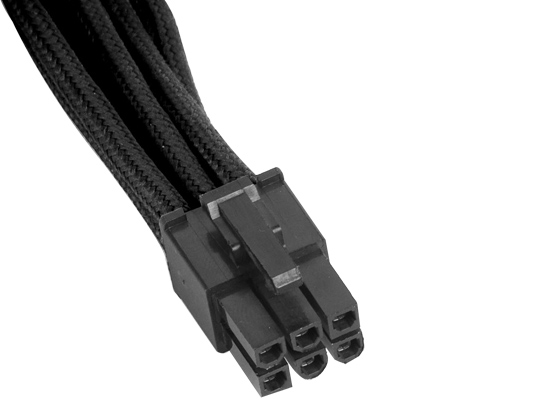

The cable is a PCI extension cable Silverstone PP07-IDE6B.

The result

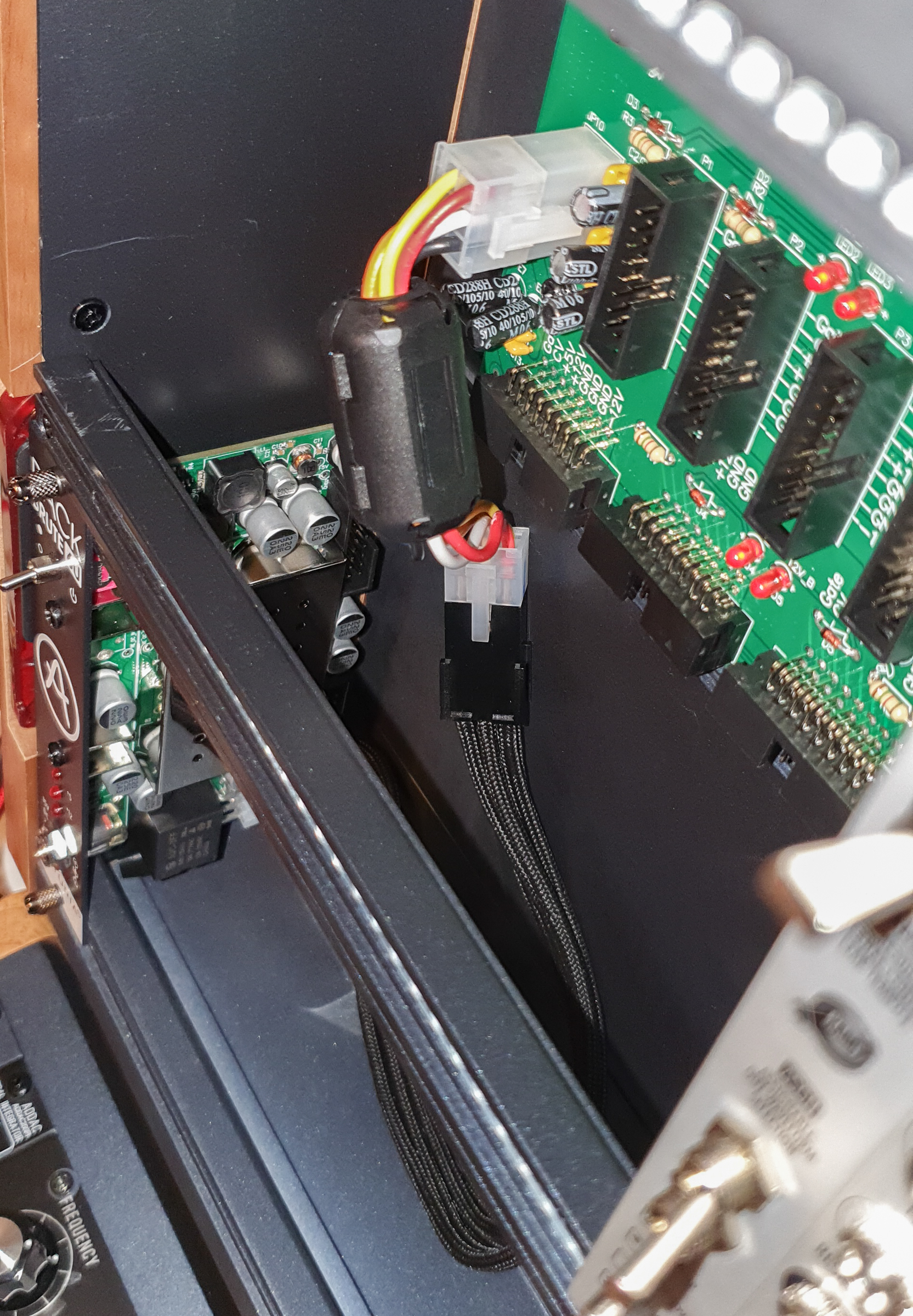

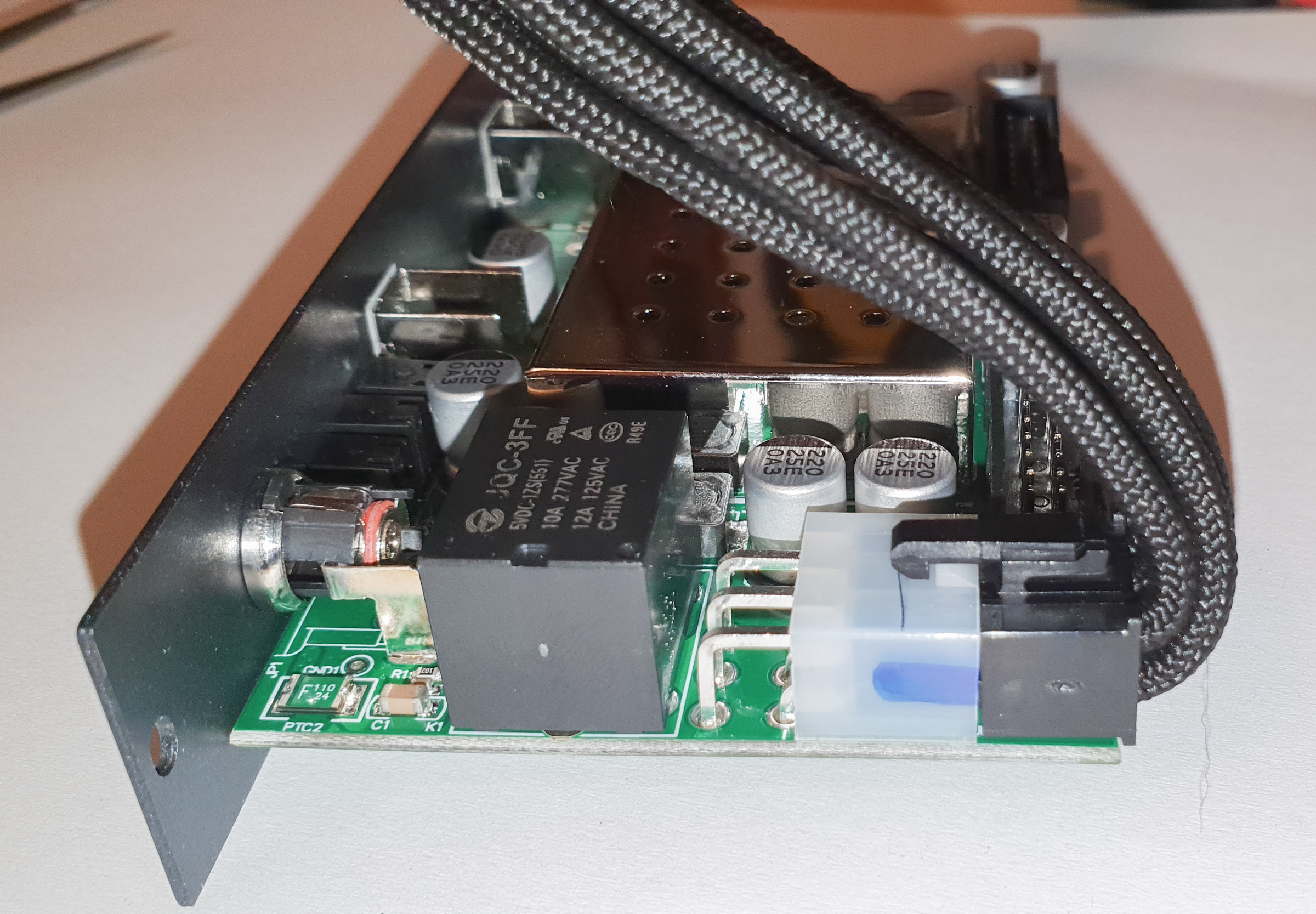

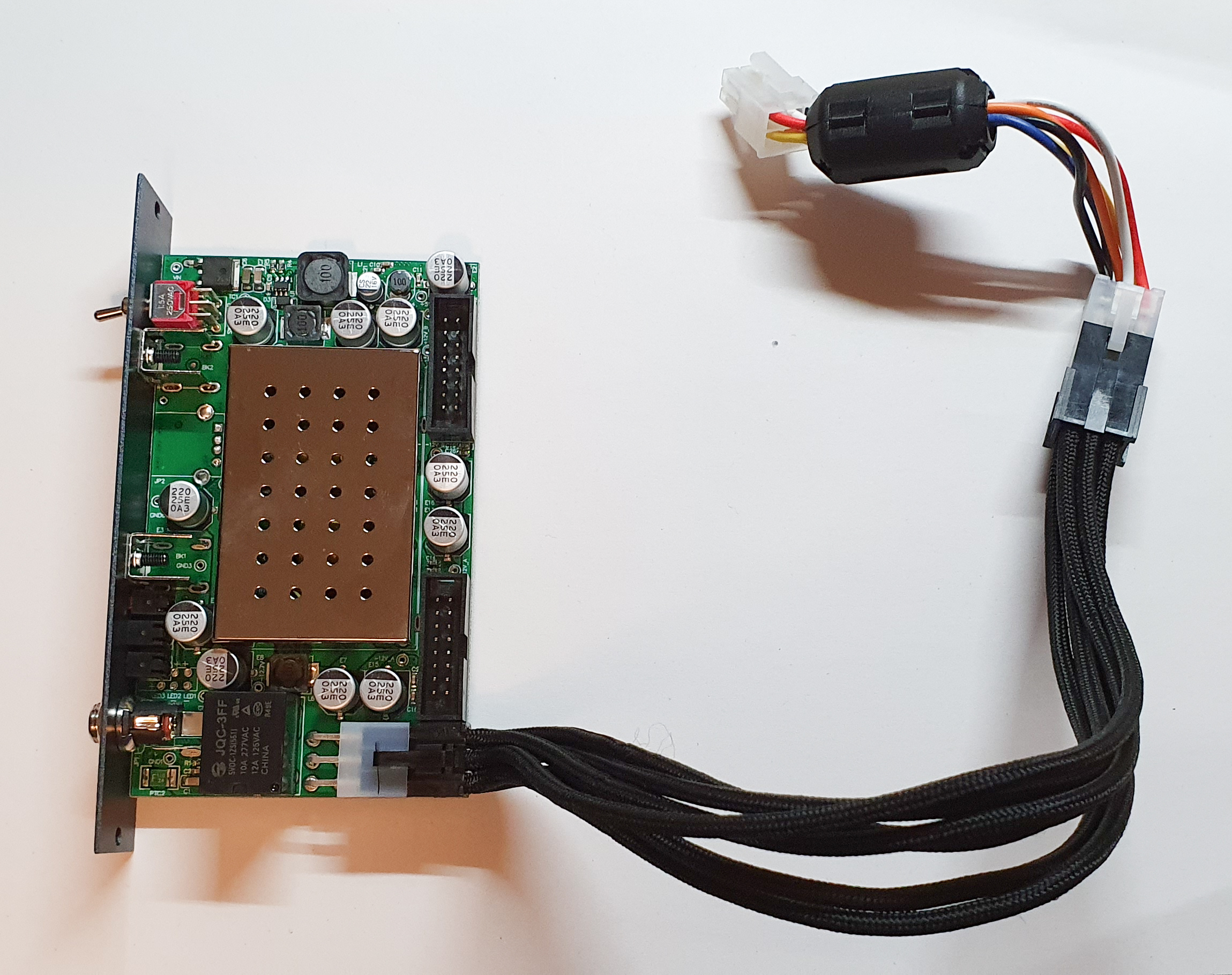

The power-supply with the extension cable :

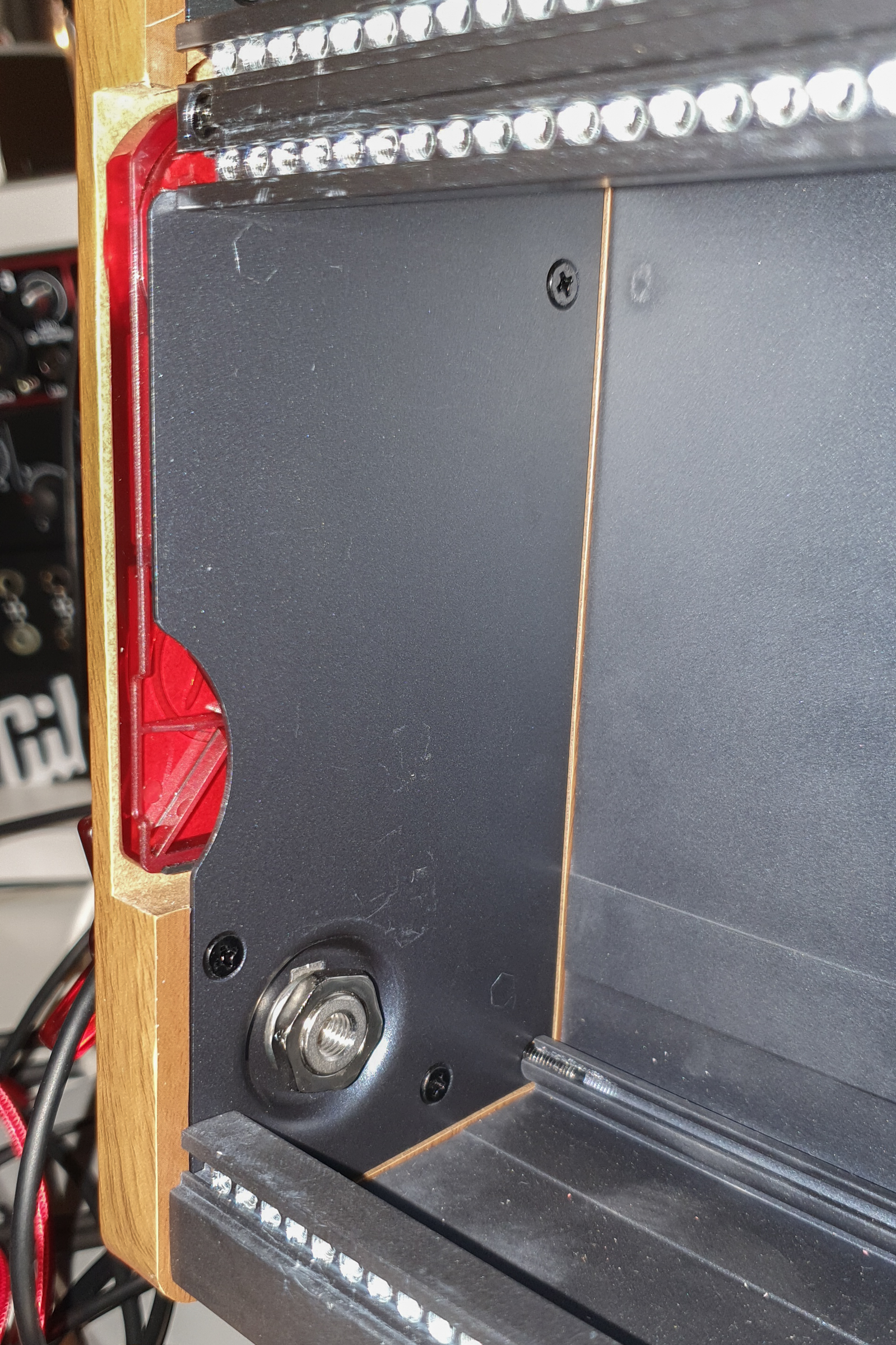

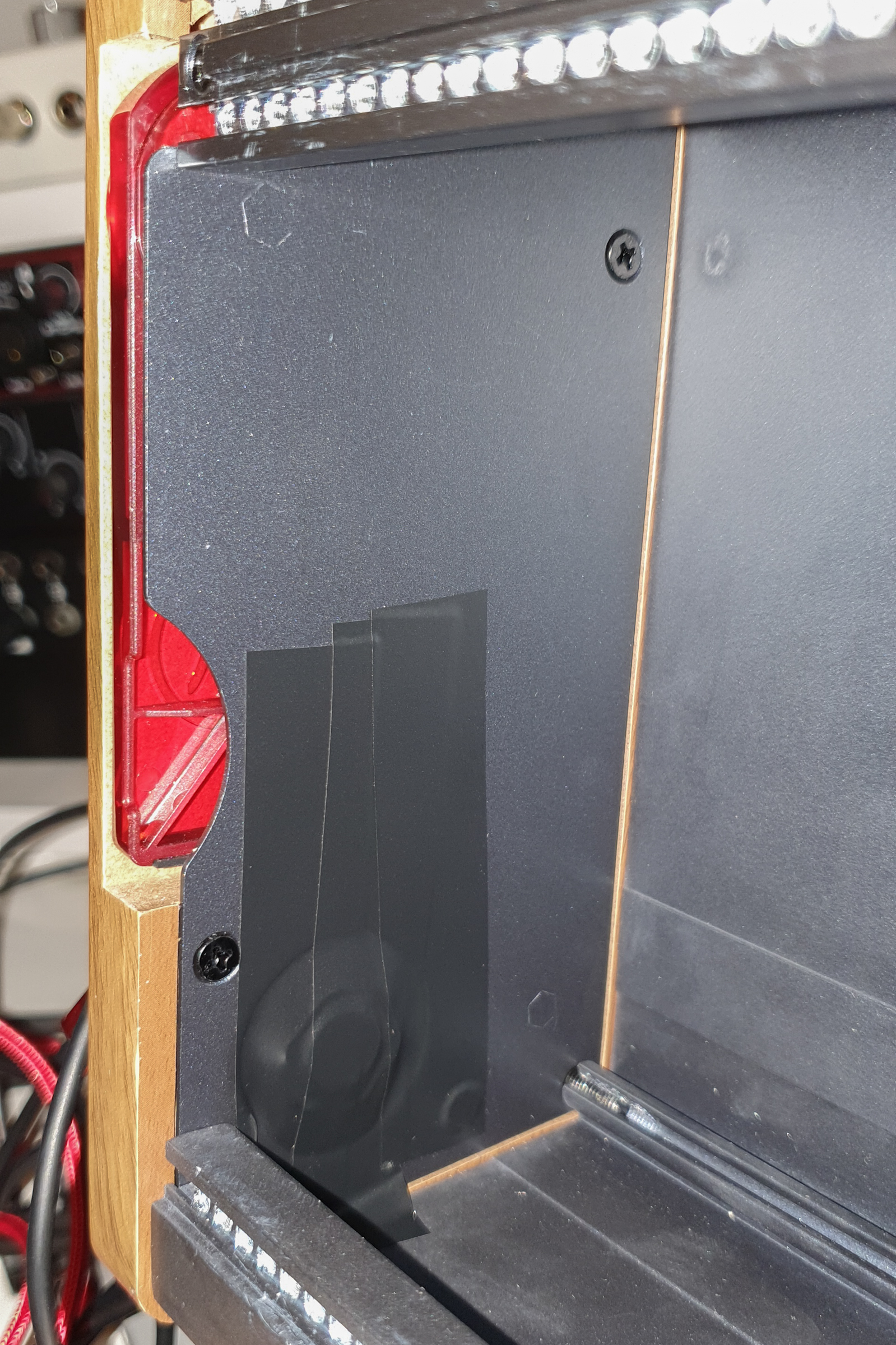

It's not really necessary, but for the peace of mind, I put some isolation tape on top of the Rackbrute handle nut socket :

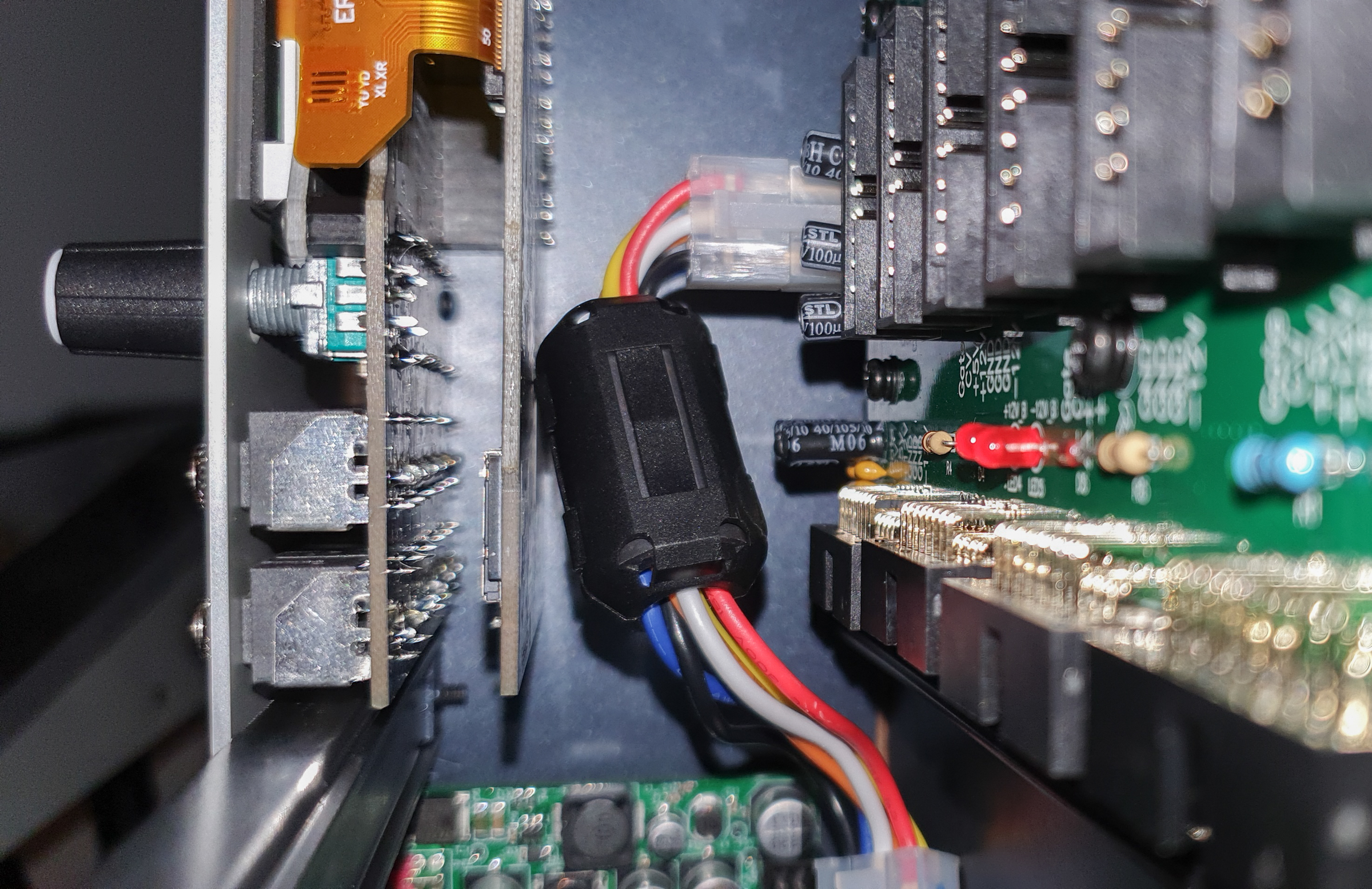

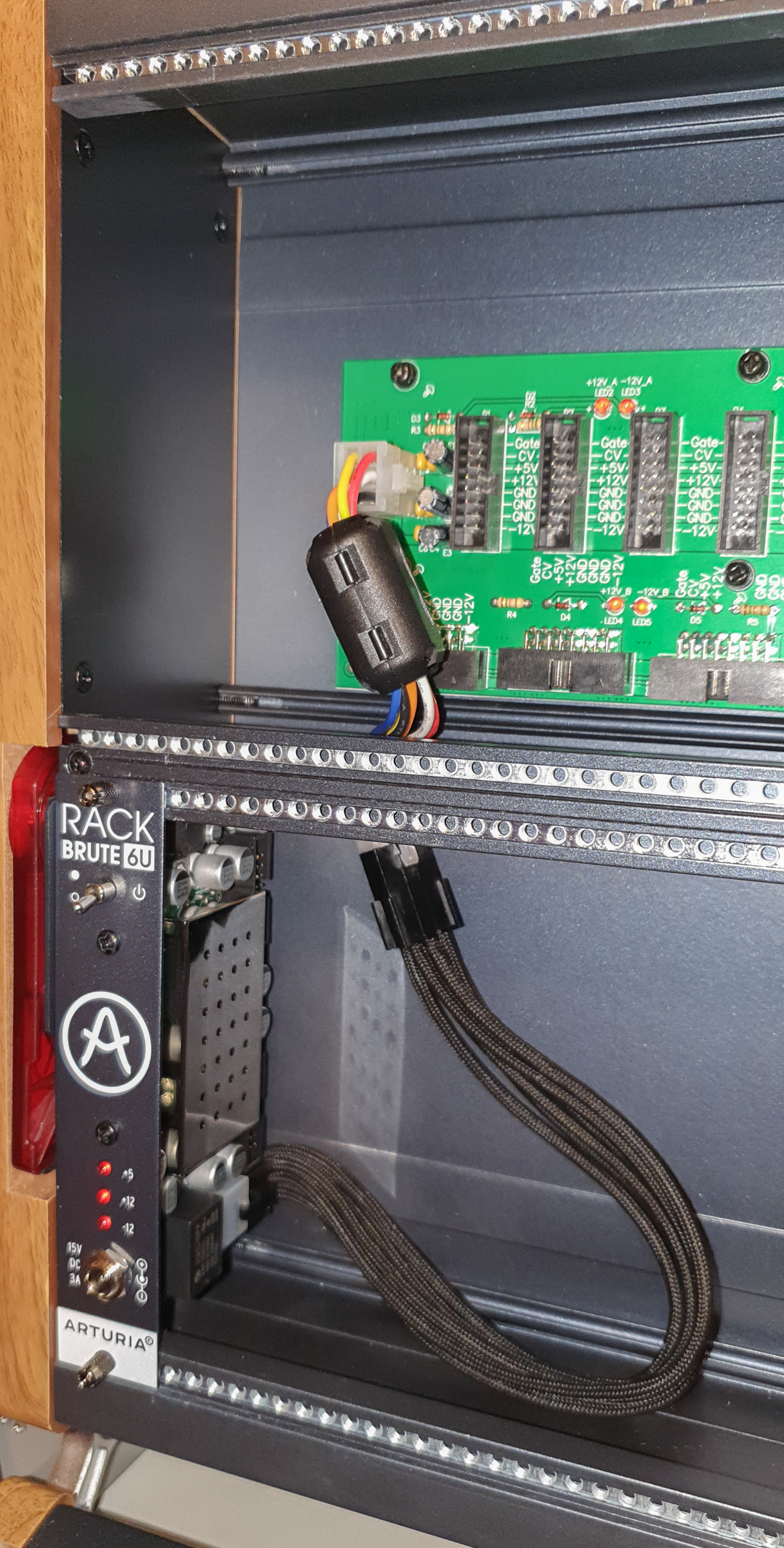

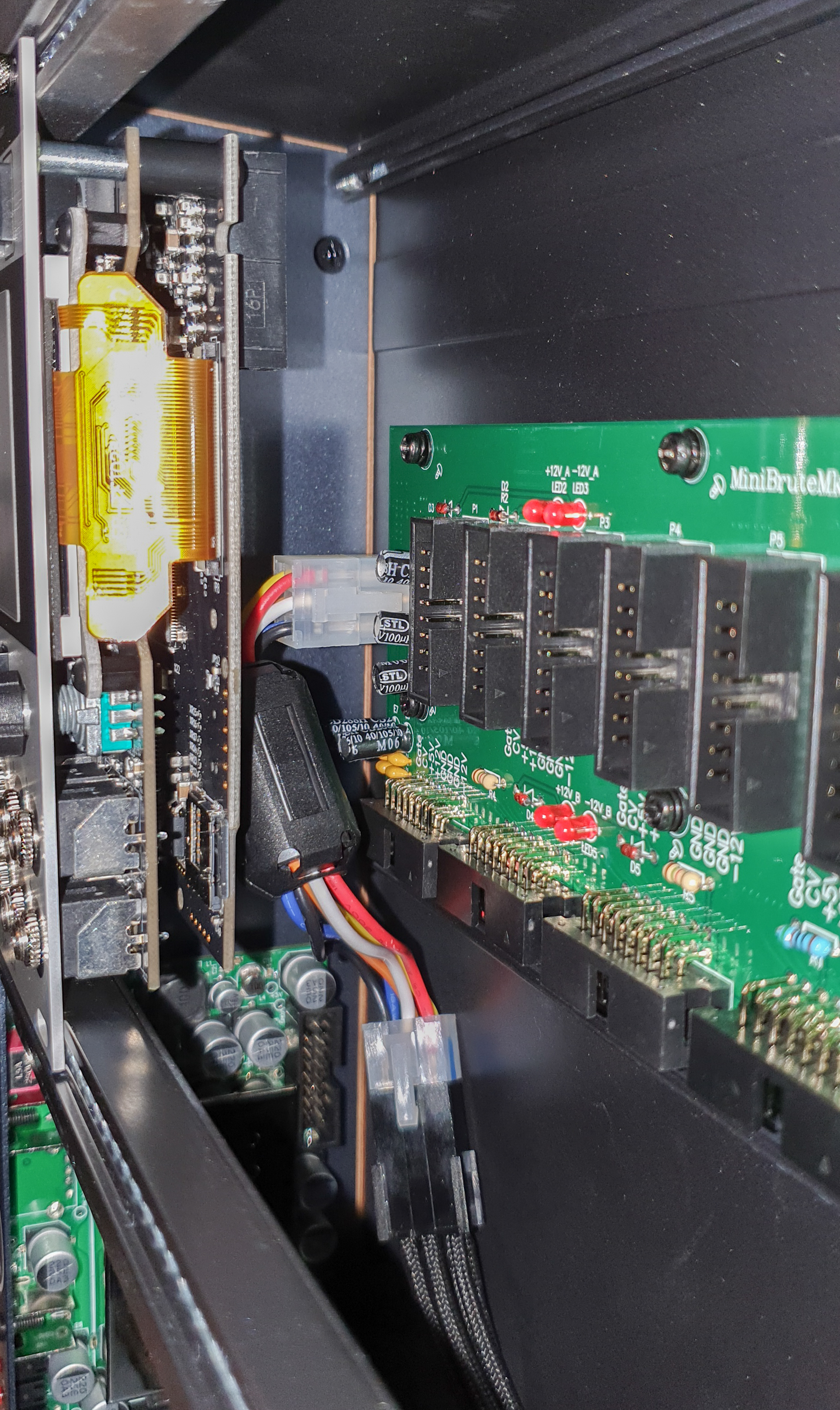

And finally, the module installed in the bottom row :
