Patch: NDLR, 4ms SWN, Sputnik VWG

	Voice 1 (Pad)	Voice 2 (Motif 1)
Sound sources	4ms Spherical Wavetable Navigator (SWN)	Sputnik Modular Variable Waveform Generator (VWG)
Filters	Xaoc Zagrzeb	Xaoc Zagrzeb
Envelopes
VCAs		Xaoc Tallin
LFOs	Xaoc Zadar, SWN, Marble	Xaoc Zadar, Xaoc Batumi
Sequencer	NDLR Pad	NDLR Motif 1
Master clock	NDLR
External effects	Valhalla Supermassive	Valhalla Supermassive
Mixer	Doepfer A-135-2
Utilities	2hp Mix Expert Sleeprs FH-2 as MIDI/CV interface between NDLR and Eurorack

Voice 1 :

FH-2 outputs 1..6 --> SWN 1V/oct inputs A..F

SWN LFO #2 --> SWN Browse CV
SWN LFO #5 --> SWN Latitude CV

SWN out L+R --> Zagrzeb
Cara (Marble) Y --> 2hp Mix
Zadar D --> 2hp Mix
2hp Mix --> Zagrzeb FM 1, CV level set to 70% (noon)

Zagrzeb cutoff 6/10
Zagrzeb resonance 60%

Zagrzeb Low Pass L+R --> A-135-2 inputs 1+2
A-135-2 outputs 1+2 --> out (Ableton)
Zadar A --> A-135-2 input CV 1
Zadar B --> A-135-2 input CV 2

FH-2 output 7 (trigger) --> Zadar Trig A

Zadar A : 140s, 8V, Warp -0.2, Resp 0.7, Shape D5, Sustain off, infinite repeat (looping), No retrig
Zadar B : 90s, 8V, Warp 0.1, Resp 0.6, Shape D5, Sustain off, infinite repeat (looping), No retrig

Zadar D : Shape Q0, 60..120s, 8V, Warp 0, Resp 0.7, Sustain off, infinite repeat (looping), No retrig

SWN: 1V/oct position, all channels center panned, all channels same output level

FH-2 :
    MIDI converter 1 : CV, Poly, 6 voices, Voice allocation = lowest voice
    MIDI converter 1 : Trigger, base output = 7
    outputs 1..6 : CV 0-10V
    outputs 7    : trigger 0-8V

Voice 2 :

FH-2 output 9 --> VWG V/oct
FH-2 output 10 --> Zadazr Trig A
Zadar A --> Tallin A linear

Zadar A : shape A0, Warp 0, Resp -0.4, level between 5..8V, Sustain off, No repeat, Analogue retrig (AN)

Tallin A : linear, level set to 100% (noon)

Batumi 1 Sin --> VWG PWN (Batumi: quite slow, free mode)
Batumi 2 (Saw) Random --> Zagrzeb FM 1, CV set to 40-50%

Zagrzeb : cutoff 6/10, Resonance 3/10

VWG : only square used; Edge, slider at 50%, PWM CV at 75%
VWG Square --> Zagrzeb L (Mono)

Tallin A --> out (Ableton)

FH-2 :
    MIDI converter 2 : CV + Trigger, base output = 1/1
    outputs 9    : CV 0-10V
    outputs 10   : trigger 0-8V

FH-2 setup :

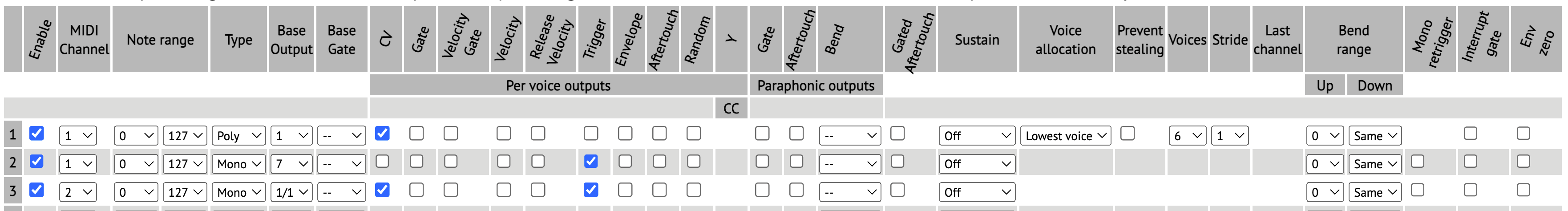

MIDI converters :

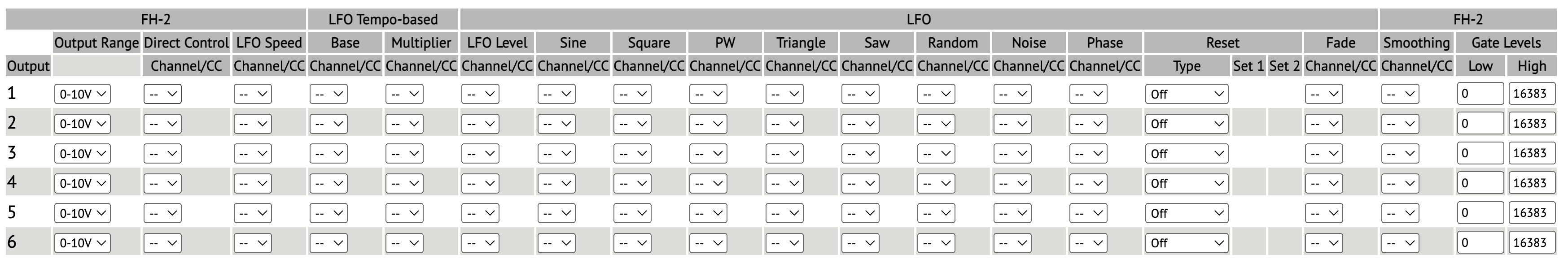

FH-2 outputs :

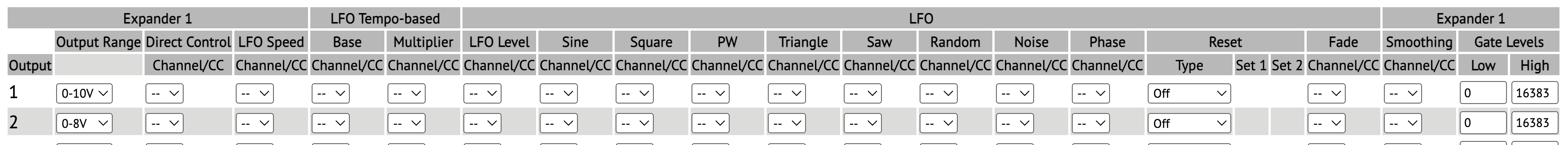

FH-2 extension :
