Waveforms Formulas

The four waveforms below, sine, square, triangle, and sawtooth, are the building blocks of subtractive synthesis. This page collects their mathematical definitions along with the equivalent NumPy expressions, which are useful for studying waveform shapes, experimenting with filters in a Jupyter notebook, or as a reference when implementing a signal generator on a microcontroller.

Variables

In the following formulas, the variables are:

$t$ : time, represented on the x-axis. In the Python code, t is a discrete array of sample points, not a true continuous variable.
$a$ : amplitude. The signal swings from $- a$ to $+ a$ , so the full peak-to-peak range is $2 a$ . All formulas produce a bipolar (AC-coupled) signal centered on zero.
$f$ : frequency in Hz
$p$ : period $= 1/ f$

To add a phase offset $φ$ (in radians) to any formula, replace $t$ with $t + φ / (2 π f)$ .

Python setup

We start by importing the numpy and matplotlib packages and defining some variables:

import matplotlib.pyplot as pp
import numpy as np

f = 1            # [Hz]
p = 1/f          # period in [s]
a = 3            # amplitude; signal swings from -a to +a, peak-to-peak = 2*a
periods = 2      # show 2 periods
samples = 1000   # sample points (resolution of the graph)

t = np.linspace(0, periods/f, samples)    # evenly spaced time values over the interval

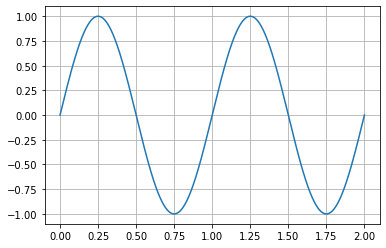

Sine wave

y (t) = a sin (2 π f t)

pp.plot(t, a * np.sin(2 * np.pi * f * t))
pp.grid()

The sine wave contains only the fundamental frequency, no harmonics. It is the only waveform that is already its own Fourier component, which is why it sounds the most pure and is used as the baseline for spectral analysis.

Square wave

y (t) = a sgn (sin 2 π f t)

The $sgn$ (signum) function returns $- 1$ for negative inputs, $+ 1$ for positive inputs, and $0$ at exactly zero. In practice the zero case is instantaneous and has no audible effect. The formula works by generating a sine wave and then hard-clipping it to $\pm a$ .

pp.plot(t, a * np.sign(np.sin(2 * np.pi * f * t)))
pp.grid()

A square wave contains only odd harmonics ( $f, 3 f, 5 f, \dots$ ), with amplitudes decreasing as $1/ n$ where $n$ is the harmonic number. This gives it a hollow, reedy timbre, characteristic of clarinets and certain organ pipes.

Alternative with the floor function

y (t) = a (2 (2 ⌊ f t ⌋ - ⌊ 2 f t ⌋) + 1)

pp.plot(t, a * (2 * (2*np.floor(f * t) - np.floor(2 * f * t)) + 1))
pp.grid()

The floor-based formula avoids trigonometric functions entirely and maps well to integer arithmetic on microcontrollers, where sin() may be unavailable or too slow.

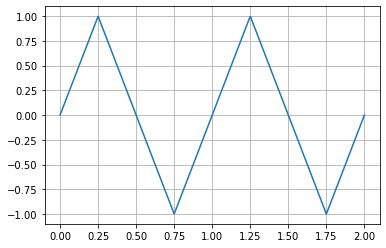

Triangle wave

y (t) = \frac{4 a}{p} ((t - \frac{p}{4}) mod p) - \frac{p}{2} - a

pp.plot(t, a * abs(((t-p/4) % p) - (p/2)) * 4 / p - a)
# '%' can be replaced by the numpy mod function:
# a * abs(np.mod((t-p/4), p) - (p/2)) * 4 / p - a
pp.grid()

Like the square wave, the triangle contains only odd harmonics ( $f, 3 f, 5 f, \dots$ ), but their amplitudes fall off much faster, as $1/ n^{2}$ . The softer slope transitions produce a mellower, more flute-like sound, and the waveform is significantly easier to low-pass filter into a sine than a square wave.

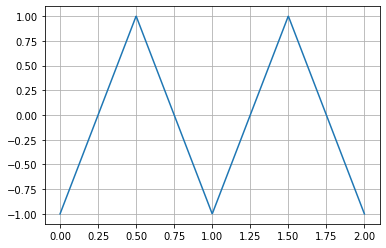

Alternative as the absolute value of a shifted sawtooth

y (t) = a (4 f t - ⌊ f t + \frac{1}{2} ⌋ - 1)

pp.plot(t, a * (4 * abs(f * t - np.floor(f * t + 1/2)) - 1))
pp.grid()

This form produces a triangle with a phase offset relative to the previous formula. If we correct the phase:

With phase corrected

y (t) = a (4 f (t + \frac{1}{4}) - ⌊ f (t + \frac{1}{4}) + \frac{1}{2} ⌋ - 1)

pp.plot(t, a * (4 * abs(f * (t+1/4) - np.floor(f * (t+1/4) + 1/2)) - 1))
pp.grid()

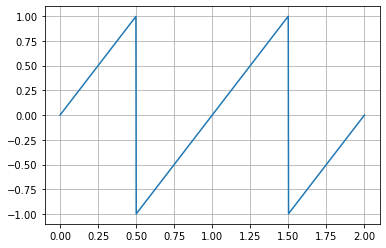

Sawtooth wave

y (t) = 2 a (\frac{t}{p} - ⌊ \frac{t}{p} + \frac{1}{2} ⌋) = 2 a (f t - ⌊ f t + \frac{1}{2} ⌋)

pp.plot(t, a * 2 * (f * t - np.floor(f * t + 1/2)))
pp.grid()

The sawtooth contains all harmonics, both odd and even ( $f, 2 f, 3 f, \dots$ ), with amplitudes decreasing as $1/ n$ . This makes it the spectrally richest of the four waveforms and the most common starting point for subtractive synthesis, as it provides the most material for filters to shape.

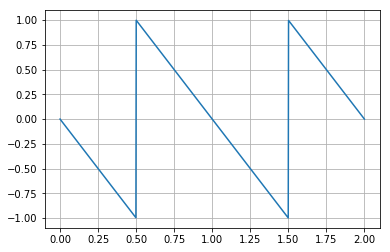

Inverse sawtooth

y (t) = 2 a (⌊ f t - \frac{1}{2} ⌋ - f t + 1)

pp.plot(t, 2 * a * (np.floor(f * t - 1/2) - f * t + 1))
pp.grid()
